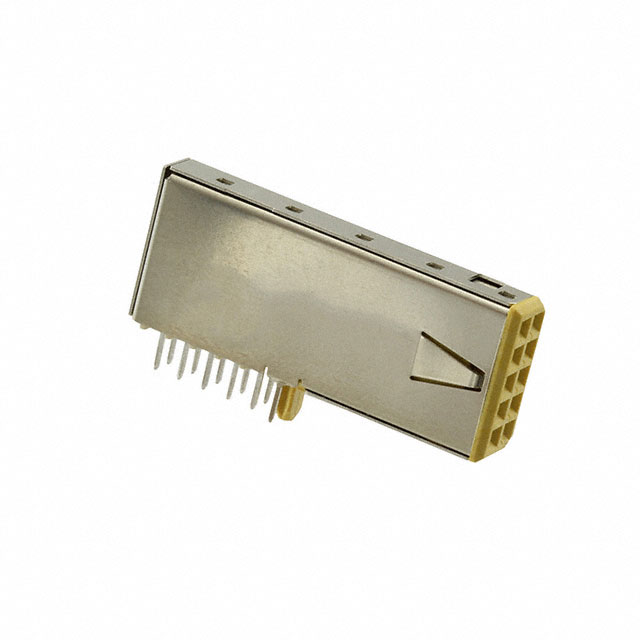

27211218004

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

Mounting Type :

Through Hole, Right Angle

Insulation Color :

Yellow

Orientation :

RIGHT ANGLE

Length - Termination :

0.114 inch

Insulation Material :

Plastic

Contact Length - Post :

0.114 2.90mm

Contact Type :

Female Socket

Gender :

Receptacle

Packaging :

Bulk

Contact Material :

COPPER ALLOY

Number of Positions :

10

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

1.5A

ECCN Code :

EAR99

IEC Conformance :

yes

Feature :

Board Guide, Shielding Pins

Termination :

Solder

Number of Conductors :

ONE

MIL Conformance :

No

HTS Code :

8536.69.40.40

Factory Lead Time :

7 Weeks

UL Flammability Code :

94V-0

Pitch - Mating :

0.079 2.00mm

Style :

Board to Cable/Wire

Mating Contact Pitch :

0.079 inch

Number Of PCB Rows :

5

Number of Positions Loaded :

All

Contact Finish - Mating :

Gold

Fastening Type :

Push-Pull

DIN Conformance :

No

Body Depth :

1.116 inch

Material Flammability Rating :

UL94 V-0

Mount :

Through Hole

JESD-609 Code :

e4

Insulation Height :

0.453 11.50mm

Series :

Har-link®

Filter Feature :

No

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Polarization Key :

POLARIZED HOUSING

Lead Free :

Lead Free

Connector Type :

Socket

Operating Temperature :

-55°C~125°C

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Square

Reliability :

COMMERCIAL

Body Breadth :

0.453 inch

Row Spacing - Mating :

0.079 (2.00mm)

Number of Rows :

2

Option :

GENERAL PURPOSE

Mixed Contacts :

No
