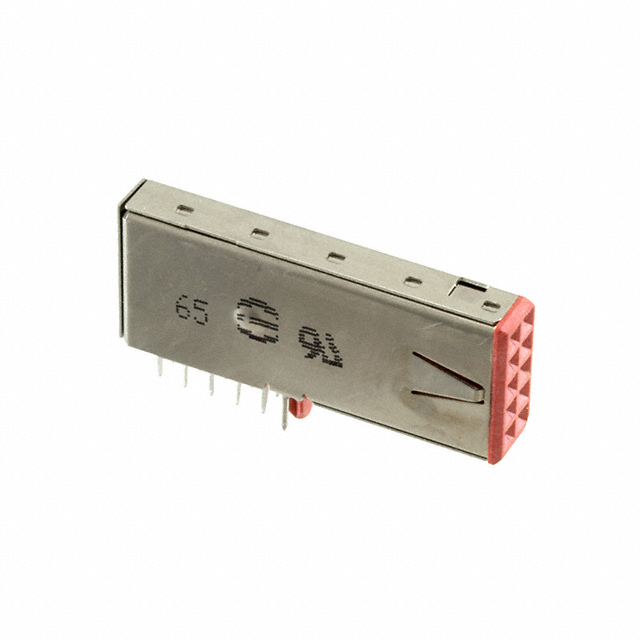

27211218002

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

Reliability :

COMMERCIAL

Row Spacing - Mating :

0.079 (2.00mm)

Number Of PCB Rows :

5

Polarization Key :

POLARIZED HOUSING

Mount :

Through Hole

Termination :

Solder

Fastening Type :

Push-Pull

Insulation Material :

Plastic

Series :

Har-link®

Body Breadth :

0.453 inch

Contact Finish - Mating :

Gold

Insulation Height :

0.453 11.50mm

Number of Positions Loaded :

All

MIL Conformance :

No

Insulation Color :

Red

Pbfree Code :

yes

UL Flammability Code :

94V-0

Packaging :

Bulk

Length - Termination :

0.114 inch

Mixed Contacts :

No

Lead Free :

Lead Free

Body Depth :

1.116 inch

IEC Conformance :

yes

REACH SVHC :

No SVHC

HTS Code :

8536.69.40.40

Filter Feature :

No

Mounting Type :

Through Hole, Right Angle

Feature :

Board Guide, Shielding Pins

Pitch - Mating :

0.079 2.00mm

Number of Positions :

10

Number of Conductors :

ONE

Contact Shape :

Square

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Option :

GENERAL PURPOSE

Connector Type :

Socket

Operating Temperature :

-55°C~125°C

Current Rating :

1.5A

ECCN Code :

EAR99

Style :

Board to Cable/Wire

Orientation :

RIGHT ANGLE

Gender :

Receptacle

JESD-609 Code :

e4

Contact Type :

Female Socket

DIN Conformance :

No

Contact Length - Post :

0.114 2.90mm

Contact Material :

COPPER ALLOY

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.079 inch

PCB Contact Pattern :

RECTANGULAR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
