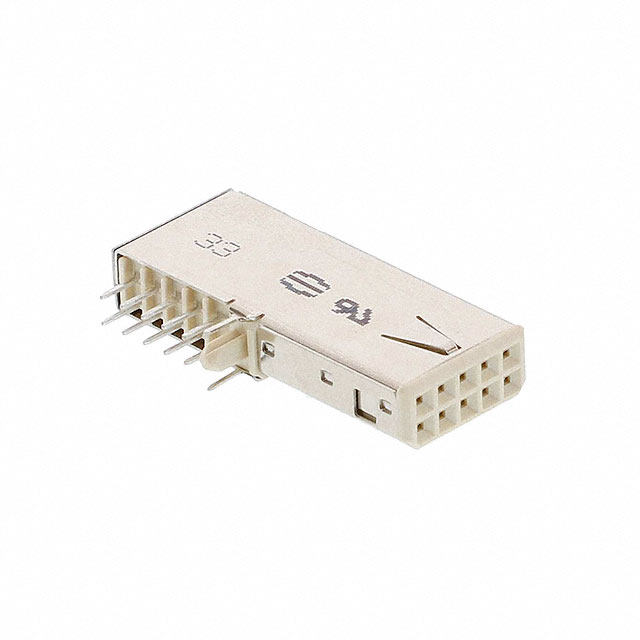

27211218000

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

Mount :

Through Hole

Connector Type :

Socket

Polarization Key :

POLARIZED HOUSING

Length :

5.2mm

Insulation Color :

Natural

Number of Positions :

10

Mixed Contacts :

No

DIN Conformance :

No

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

5

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated AC :

750V

Color :

Beige

Current Rating :

1.5A

Factory Lead Time :

9 Weeks

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Mounting Type :

Through Hole, Right Angle

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Number of Conductors :

ONE

Fastening Type :

Push-Pull

IEC Conformance :

yes

Feature :

Board Guide, Shielding Pins

Reliability :

COMMERCIAL

Contact Type :

Female Socket

Packaging :

Bulk

Number of Ports :

1

Pitch - Mating :

0.079 2.00mm

Mating Contact Pitch :

0.079 inch

Depth :

28.35mm

UL Flammability Code :

94V-0

Insulation Material :

Plastic

PCB Contact Pattern :

RECTANGULAR

Contact Material :

COPPER ALLOY

Number of Columns :

5

Termination :

Solder

Filter Feature :

No

Housing Material :

Polyester

Contact Finish - Mating :

Gold

Material Flammability Rating :

UL94 V-0

Series :

Har-link®

Contact Shape :

Square

Contact Length - Post :

0.114 2.90mm

Gender :

Receptacle

REACH SVHC :

No SVHC

Lead Free :

Lead Free

Style :

Board to Cable/Wire

Orientation :

RIGHT ANGLE

Row Spacing - Mating :

0.079 (2.00mm)

Number of Positions Loaded :

All

Insulation Height :

0.453 11.50mm

Number of Rows :

2

Max Current Rating :

1.5A
