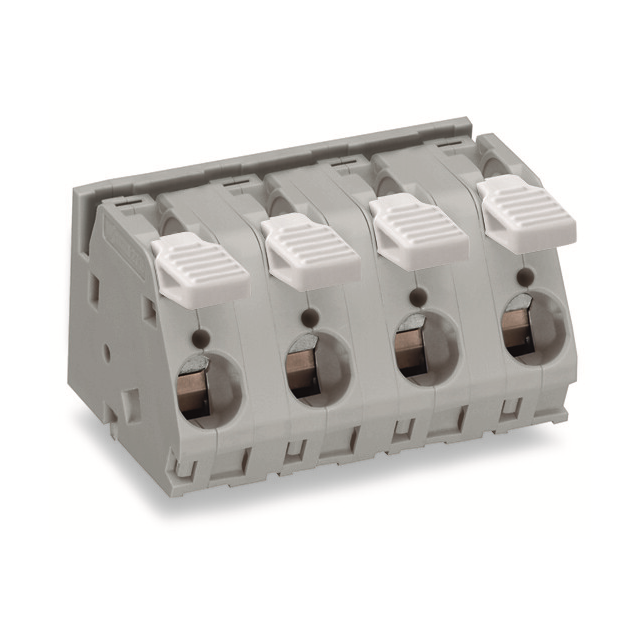

2716-255
- Mfr.Part #
- 2716-255
- Manufacturer
- WAGO
- Package / Case
- Datasheet
- Download
- Description
- PCB TERMINAL BLOCK; LEVER; 16 MM
- Stock
- 27,646
- In Stock :
- 27,646
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- WAGO
- Product Category :
- Wire to Board
- Approvals :
- cURus;CSA
- Operating Temperature :
- -60°C ~ 105°C
- Height :
- 28.8
- Rated Voltage :
- 1kV
- Connectable conductor cross section multi-wired :
- 1.5 - 16
- Rated current In :
- 76
- Composition :
- Polyamide
- Number of Levels :
- 1
- Package :
- Box
- Connectable conductor cross section fine-strand without cable end sleeve :
- 1.5 - 16
- Pollution degree :
- 2
- Color :
- Gray
- Features :
- Lever Actuated
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Type of fastening :
- Solder
- Connection Type :
- Spring Clamp
- Pitch :
- 0.591 (15.00mm)
- Connectable conductor cross section fine-strand with cable end sleeve :
- 1.5 - 10
- Inflammability class of insulation material according to with UL94 :
- V0
- Mounting Type :
- PCB Mount
- Temperature Range :
- -76 to 221 Degrees F
- Number of Poles :
- 5
- Screw Material - Plating :
- -
- Voltage :
- 600 V
- Connectable conductor cross section solid-core :
- 1.5 - 16
- RoHS :
- yes
- Clamp Material - Plating :
- Steel - Nickel Plated
- Screw Thread :
- -
- Manufacturer :
- Wago
- Wire Gauge :
- 6-16 AWG
- Current :
- 65 A
- Packaging type :
- Other
- Rated surge voltage :
- 8
- Pin Length :
- 4.5 MilliMeters
- Wire Termination :
- Screwless - Spring Cage, Tension Clamp
- Torque - Screw :
- -
- Over voltage category :
- III
- Series :
- -
- Product Status :
- Active
- Mating Orientation :
- Horizontal with Board
- Positions Per Level :
- 5
- Contact Material - Plating :
- Electrolytic Copper - Tin Plated
- Rated Current :
- 76A
- Datasheets
- 2716-255
