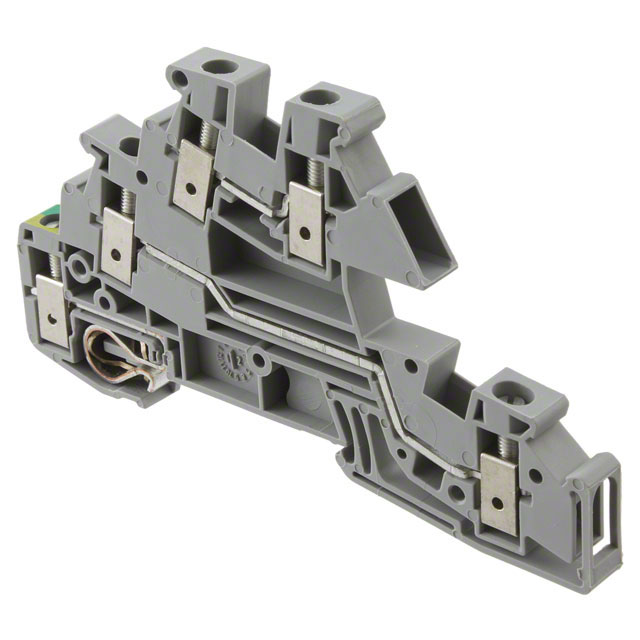

2714022

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Series :

CLIPLINE PIK

Voltage - Rated AC :

400V

Width :

6.2mm

Safety Approval :

UL

Number of Positions :

5

Current - IEC :

32A

Type :

Feed Through (2), Isolated

Wire Gauge (Max) :

28 AWG

Height :

59mm

Stripping Length :

9mm

Factory Lead Time :

6 Weeks

Flammability Rating :

UL94 V-2

Wire Gauge or Range - AWG :

12-28 AWG

Number of Rows :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Approval Agency :

UL

Lead Pitch :

6.2mm

Color :

Gray

Pbfree Code :

yes

Wire Gauge or Range - mm² :

0.2-4mm2

Wire Cross Section :

4 mm2

Number of Contacts :

3

Material - Insulation :

Polyamide (PA), Nylon

Wire Gauge (Min) :

12 AWG

Current Rating :

34A

Number of Levels :

3; 1 Grounded

RoHS Status :

RoHS Compliant

Termination Style :

Screw

Current :

20A

ECCN Code :

EAR99

Wire/Cable Gauge :

24 AWG

REACH SVHC :

Unknown

Voltage :

300V

Number of Ways :

5

Weight :

22.75001g

Material Flammability Rating :

UL94 V-2

Published :

2006

Voltage - Rated DC :

400V

Number of Decks :

3

Length :

88mm
