27111618001

Share

Or copy the link below:

Mfr.Part #
27111618001
Manufacturer
HARTING
Package / Case
Datasheet
Download
Description
CONN 10POS IDC 28-30AWG
Stock
13,759
In Stock :
13,759

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
HARTING
Product Category :
Free Hanging, Panel Mount
Wire Gauge (Min) :
28 AWG
UL Flammability Code :
94V-0
Current Rating :
1.5A
Min Operating Temperature :
-55°C
Contact Material :
NOT SPECIFIED
Termination Type :
IDC
Pbfree Code :
yes
Reliability :
COMMERCIAL
Cable Termination :
IDC
RoHS Status :
ROHS3 Compliant
Contact Plating :
Gold
DIN Conformance :
No
Wire Gauge (Max) :
30 AWG
Connector Type :
IDC, Male Pin
Number of Positions :
10
Filter Feature :
No
Max Current Rating :
1.5A
Body/Shell Style :
Receptacle
Voltage - Rated :
750V
Orientation :
Straight
Number of Ports :
1
Color :
Black
Max Operating Temperature :
125°C
Wire Type :
Discrete
Factory Lead Time :
4 Weeks
Row Spacing :
0.079 (2.00mm)
Contact Type :
Male Pin
Series :
Har-link®
Mixed Contacts :
No
Polarization Key :
POLARIZED HOUSING
Total Number of Contacts :
10
Option :
GENERAL PURPOSE
MIL Conformance :
No
Packaging :
Bulk
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mounting Type :
Free Hanging (In-Line)
Lead Free :
Lead Free
Number of Rows :
2
IEC Conformance :
yes
Wire Gauge :
28-30 AWG
Contact Finish - Mating :
NOT SPECIFIED
Fastening Type :
Latch Lock
Housing Material :
Polyester
Pitch :
0.079 2.00mm
Depth :
39mm
Mount :
Free Hanging
Introducing Free Hanging, Panel Mount HARTING 27111618001 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), 27111618001 pinout, 27111618001 datasheet PDF, 27111618001 amp .Beyond Free Hanging, Panel Mount HARTING 27111618001 ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.

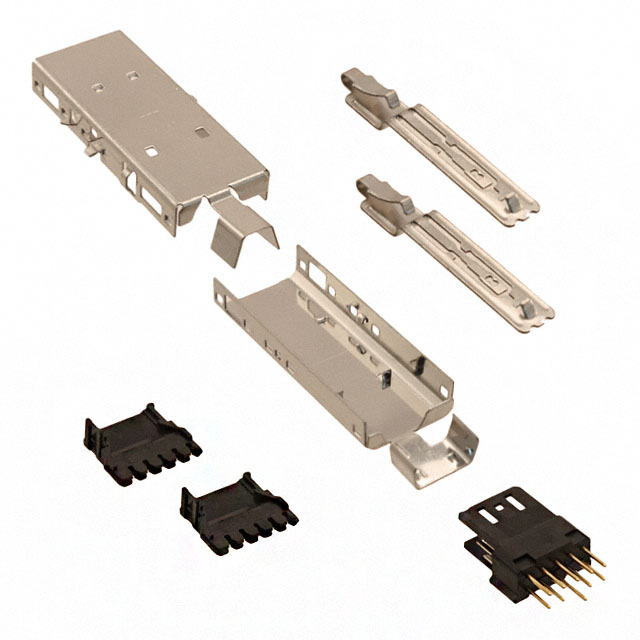

HARTING 27111618001


27111618001 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from HARTING stock available at Xinshop

Description: The HARTING Elektronik Rectangular Connectors - Free Hanging, Panel Mount 27111618001 is a 8-pole male connector with a screw terminal and cable outlet. It features a straight cable gland M16 and a cable gland M20.

Features:
- 8-pole male connector
- Screw terminal
- Cable outlet
- Straight cable gland M16
- Cable gland M20

Applications: The HARTING Elektronik Rectangular Connectors - Free Hanging, Panel Mount 27111618001 is suitable for a variety of applications, including industrial automation, robotics, and machine control. It is also suitable for use in harsh environments, such as in the automotive industry.
