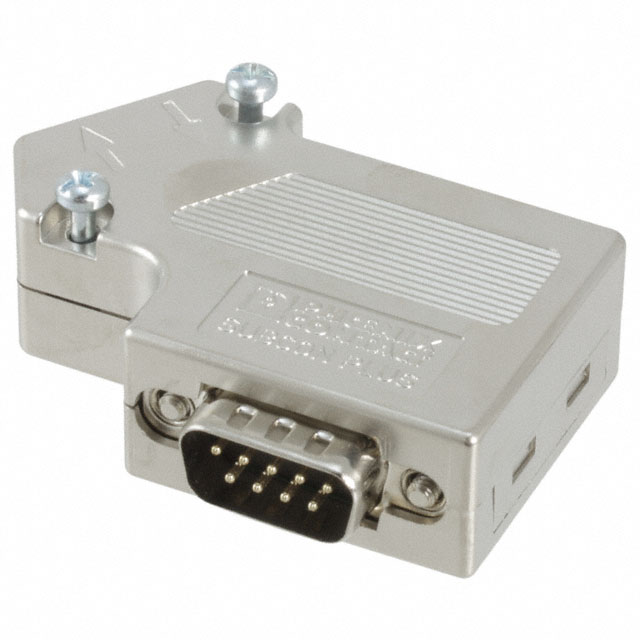

2708232

Manufacturer :

Phoenix Contact

Product Category :

D-Sub Connector Assemblies

Pitch :

2.77mm

Flange Feature :

Cable Side, Male Jackscrew (4-40)

Width :

16.6mm

Factory Lead Time :

4 Weeks

Depth :

16.6mm

Voltage - Rated AC :

60V

Orientation :

RIGHT ANGLE

Operating Temperature :

-20°C~75°C

Termination :

Terminal Block

Lead Free :

Lead Free

Wire Gauge (Max) :

16 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

1A

Packaging :

Bulk

Ratings :

IP40

Mounting Type :

Free Hanging (In-Line)

Length :

58mm

Published :

2007

Number of Rows :

2

Series :

SUBCON

Connector Style :

D-Sub

Connector Type :

Plug, Male Pins

Housing Material :

Metal

Number of Positions :

9

Gender :

Male

Min Operating Temperature :

-20°C

Dielectric Material :

Acrylonitrile Butadiene Styrene (ABS), Metal Plated

Feature :

Shielded

Number of Pins :

9

Wire/Cable Diameter :

-8.4 mm

Package / Case :

Metal

Wire Gauge (Min) :

26 AWG

Contact Type :

Signal

Mount :

Cable, Free Hanging

Number of Contacts :

9

Weight :

39.999986g

RoHS Status :

RoHS Compliant

Max Operating Temperature :

75°C

Shell Size, Connector Layout :

1 DE E

Height :

39.4mm

Current Rating :

1A

Material :

ABS

Voltage - Rated :

60V
