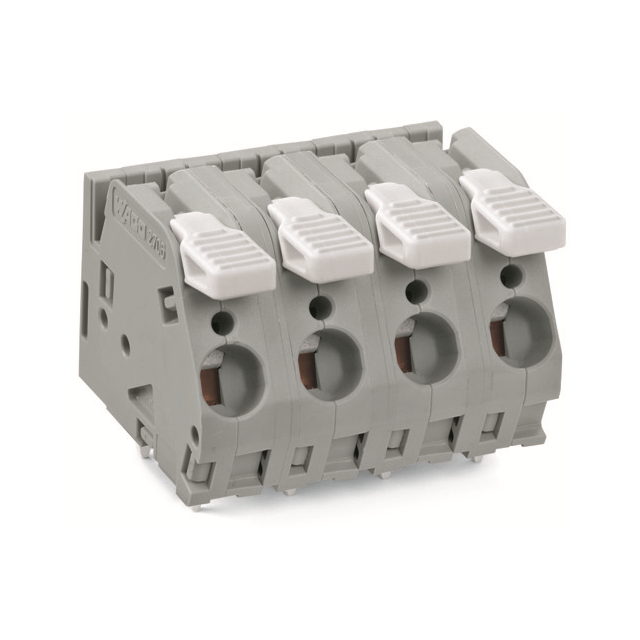

2706-260

Manufacturer :

WAGO

Product Category :

Wire to Board

Manufacturer :

Wago

Color :

Gray

Mating Orientation :

Horizontal with Board

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

Connectable conductor cross section multi-wired :

0.5 - 6

Features :

Lever Actuated

EU RoHS :

Compliant

Approvals :

UL;CSA

PPAP :

No

Operating Temperature :

-60°C ~ 105°C

Number of Levels :

1

Product Status :

Active

Series :

-

Height :

25.5

Inflammability class of insulation material according to with UL94 :

V0

Packaging type :

Other

Type of fastening :

Solder

Current :

30 A

RoHS :

yes

Housing Material :

Polyamide (PA66), Nylon 6/6

Connection Type :

Spring Clamp

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Rated current In :

41

Positions Per Level :

10

Torque - Screw :

-

Screw Material - Plating :

-

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Connectable conductor cross section solid-core :

0.5 - 6

Temperature Range :

-76 to 221 Degrees F

Pin Length :

4.5 MilliMeters

Clamp Material - Plating :

Steel - Nickel Plated

HTS :

8536.90.40.00

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 6

Number of Poles :

10

ECCN (US) :

EAR99

Rated surge voltage :

8

Composition :

Polyamide

Voltage :

300 V

Screw Thread :

-

Over voltage category :

III

Automotive :

No

Wire Gauge :

10-20 AWG

Pollution degree :

2

Package :

Box

Mounting Type :

PCB Mount

Pitch :

0.394 (10.00mm)
