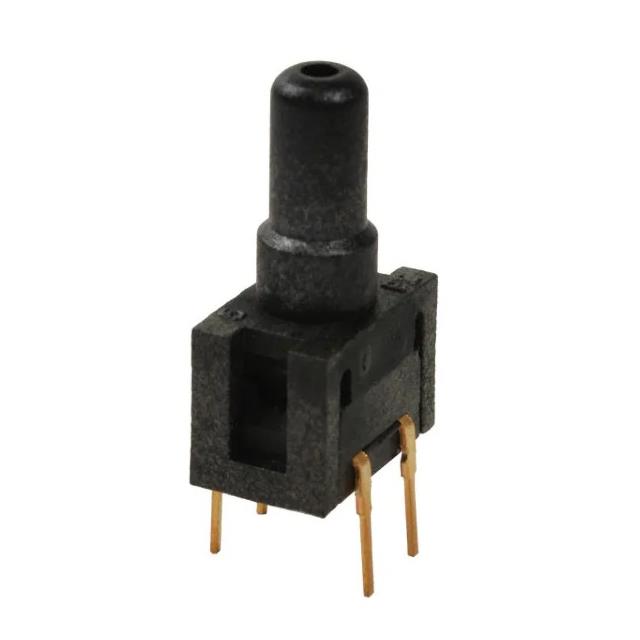

26PCBFA2G
Or copy the link below:
- Mfr.Part #
- 26PCBFA2G
- Manufacturer
- Honeywell Sensing and Productivity Solutions
- Package / Case
- 4-SIP Module
- Datasheet
- Download
- Description
- SENSOR 5PSI GAUGE
- Stock
- 249
- In Stock ：
- 249
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Honeywell Sensing and Productivity Solutions
- Product Category :
- Pressure Sensors, Transducers
- Pressure Sensing Mode :
- Gage
- Body Breadth :
- 7.87 mm
- Voltage - Supply :
- 2.5V~16V
- Maximum Pressure :
- ±20PSI (±137.9kPa)
- Resistance :
- 11.5kOhm
- Operating Temperature :
- -40°C~85°C
- Weight :
- 2G
- Mount :
- Through Hole
- Port Style :
- Barbless
- Applications :
- Board Mount
- Accuracy :
- ±0.5%
- Lead Free :
- Lead Free
- Offset-Nom :
- 0MV
- Pressure Range-Max :
- 5 psi
- Pressure Type :
- Compound
- Termination :
- PC Pin
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Sensors/Transducers Type :
- PRESSURE SENSOR,PEIZORESISTIVE
- Number of Pins :
- 4
- RoHS Status :
- RoHS Compliant
- Feature :
- Temperature Compensated
- Termination Style :
- PC Pin
- Max Pressure :
- 20 PSI
- Factory Lead Time :
- 8 Weeks
- Max Supply Voltage (DC) :
- 16V
- Response Time :
- 1 ms
- Output Type :
- Wheatstone Bridge
- Linearity :
- 0.5 %
- Port Size :
- Male - 0.2 5mm Tube
- Operating Supply Voltage :
- 10V
- Package / Case :
- 4-SIP Module
- Output Voltage :
- 50mV
- Published :
- 2002
- Operating Pressure :
- ±5PSI (±34.47kPa)
- Output :
- 0 mV ~ 50 mV (10V)
- Series :
- 26PC
- Radiation Hardening :
- No
- Datasheets
- 26PCBFA2G
26PCBFA2G Documents
26PC Series Compound Pressure Sensor Wheatstone Bridge -40°C~85°C ±5PSI (±34.47kPa) Barbless ±0.5% 0 mV ~ 50 mV (10V) 2.5V~16V Temperature Compensated
26PCBFA2G Overview
Transducers in 4-SIP Module are included for convenience. For reliable performance, set the temperature of the transducers to -40°C~85°C. Supply voltages of 2.5V~16V are suitable for the transducers. This can only be accomplished by connecting 4 pins to the transducers. 5 Psi is the maximum pressure range set by this transducer. To make the transducers work, the voltage released by them must be 50mV.
26PCBFA2G Features
Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: 4-SIP Module
Operating Temperature: -40°C~85°C
4 Pins
26PC series
Operating Pressure: ±5PSI (±34.47kPa)
Operating Supply Voltage: 10V
26PCBFA2G Applications
There are a lot of Honeywell Sensing and Productivity Solutions
26PCBFA2G Transducers applications.
- Mobile Phones
- Virtual Reality and Gaming Equipment
- Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
- Refrigerant pressure monitoring in HVAC/R systems
- Dry air system pressure, process controls and automation
- Dry air system monitoring
