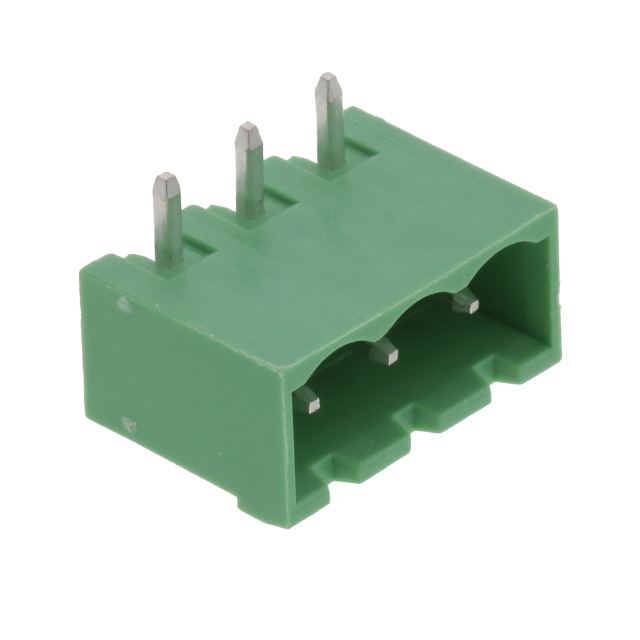

2645670000
Or copy the link below:
- Mfr.Part #
- 2645670000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK HDR 3POS 90DEG 5.00MM
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Mounting Type :
- Through Hole
- Contact Tail Length :
- 0.154 3.90mm
- Termination Style :
- Solder
- Voltage - UL :
- 300V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Packaging :
- Bulk
- Color :
- Green
- Factory Lead Time :
- 10 Weeks
- Series :
- Omnimate CH
- Number of Levels :
- 1
- Voltage - IEC :
- 630V
- Current - IEC :
- 15A
- Number of Positions :
- 3
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Insulation Height :
- 0.327 8.30mm
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 0.197 5.00mm
- Contact Mating Finish :
- Tin
- Operating Temperature :
- -40°C~105°C
- Header Orientation :
- 90°, Right Angle
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Datasheets
- 2645670000
2645670000 Documents
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate CH Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
2645670000 Overview
This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate CH Series.As a result, the device runs at -40°C~105°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (4 Side) products.
2645670000 Features
Omnimate CH series
2645670000 Applications
There are a lot of Weidmüller
2645670000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
