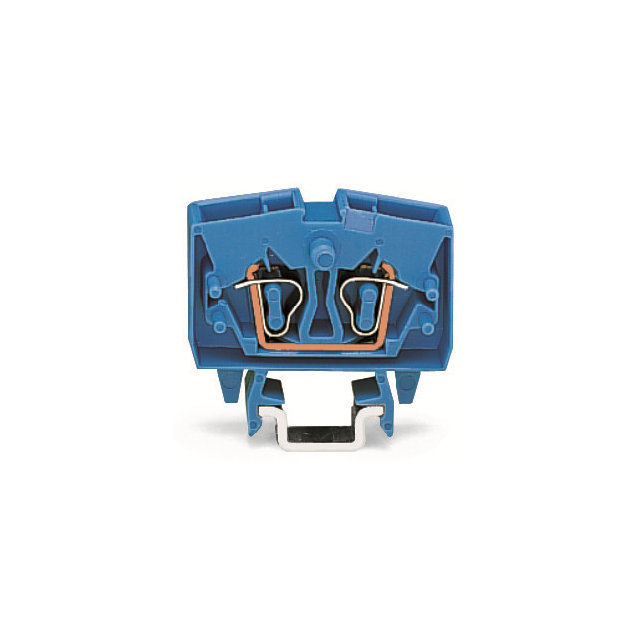

264-704

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Voltage Rating (AC) :

800 V

Compatible with (details) :

TS 15

Pins per row :

2

Cross section (inflexible) (max.) :

2.50mm²

Inflammability class of insulation material according to with UL94 :

V0

Color :

Blue

Width :

6mm

Wire Gauge (Max) :

12 AWG

Cross section (flexible) (max.) :

2.50mm²

Voltage Rating :

800 V

Nominal current (details) :

24A

Flammability Rating :

UL94 V-0

Rated Voltage :

800V

Height :

24.50mm

Cross section (flexible) (min.) :

0.08mm²

Dim :

(W x H) 6 mm x 24.50 mm

Nominal current - rounded value :

24A

Pitch :

6 mm

Lead Pitch :

6 mm

Voltage - UL :

-

Number of Rows :

1

Wire Gauge or Range - mm² :

0.08-2.5mm²

Material - Insulation :

-

AWG max. :

14

Nominal voltage (details) :

800V

Type :

Miniature Block

Disconnect Type :

-

Connection :

Pull spring

AWG (min.) :

28

Rated Current :

24A

Depth :

24.5

Product Status :

Active

Series :

264

Terminal - Width :

6.0mm

Connectable conductor cross section solid-core :

0.08 - 2.5

Nominal current :

24A

Manufacturer part # :

264-704

No. of rows :

1

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Nominal voltage :

800V

Configuration :

N

Fuse Type :

-

Length :

32

Rated current In :

24

Mounting Type :

DIN Rail

Lead Free :

Lead Free

Connectable conductor cross section multi-wired :

0.08 - 2.5

Mount :

Screw

Stripping Length :

8mm ~ 9mm

Clamp width :

6mm

Number of Contacts :

1

Current Rating :

24 A

Stripping length (max.) :

9mm

Wire/Cable Gauge :

28 AWG

Termination :

Cage Clamp

Voltage - IEC :

800V

Min. stripping length :

8mm

Number of Pins :

2

Number of Poles :

2

Manufacturer :

Wago

Content :

1pc(s)

Cross section (inflexible) (min.) :

0.08mm²

Current - IEC :

24 A

Termination Style :

Push In, Spring

Wire Gauge (Min) :

28 AWG

Features :

-

Number of Circuits :

1

Number of Positions :

2

REACH SVHC :

No SVHC

Number of Levels :

1

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

12-28 AWG

RoHS :

yes

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5
