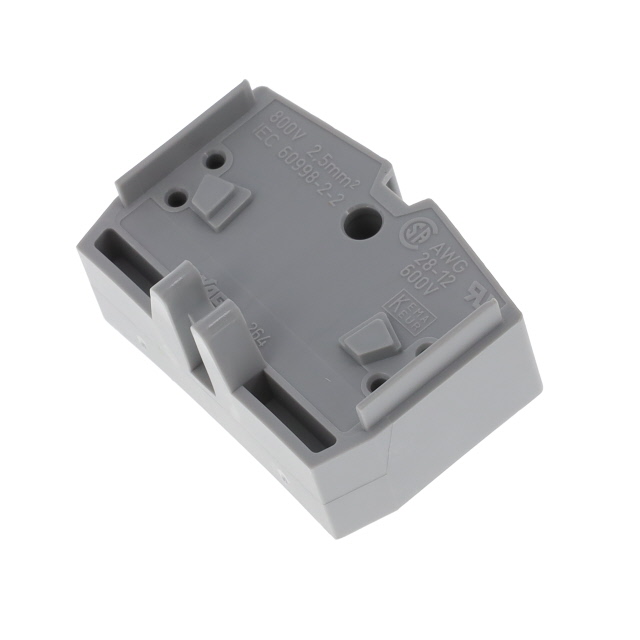

264-331

Manufacturer :

WAGO

Product Category :

Specialized

Product Length (mm) :

10

Nominal current - rounded value :

24A

Color :

Gray

Nominal voltage :

800V

HTS :

8536.90.40.00

Automotive :

No

Minimum Operating Temperature (°C) :

-60

PPAP :

No

Wire Gauge or Range - AWG :

12-28 AWG

Number of Positions :

4

Rated Current :

20A

Min. stripping length :

8mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Configuration :

L

No. of rows :

1

Wire Gauge or Range - mm² :

0.08-2.5mm²

Gender :

F

AWG max. :

14

Content :

1pc(s)

Voltage - IEC :

800 V

Features :

+ sleeve

Product Status :

Active

Series :

-

Cross section (inflexible) (min.) :

0.08mm²

Body Orientation :

Straight

Manufacturer part # :

264-331

Connection :

Pull spring

Clamp width :

10mm

Product Height (mm) :

22

Package :

Bulk

Maximum Current Rating (A) :

24

Mounting Type :

Flange

Pins per row :

4

Packaging :

Box

Maximum Operating Temperature (°C) :

105

Length :

1.260 (32.00mm)

Cross section (flexible) (max.) :

2.50mm²

Operating Temperature :

-

Width :

10mm

AWG (min.) :

28

Mounting :

Panel Mount

Termination Style :

Push In, Spring

Number of Levels :

1

Cross section (inflexible) (max.) :

2.50mm²

ECCN (US) :

EAR99

Nominal current :

24A

Terminal - Width :

10.0mm

Approvals :

CSA, cURus

Rated Voltage :

300V

Number of Circuits :

2

Type :

Terminal Block

Cross section (flexible) (min.) :

0.08mm²

Maximum Voltage Rating :

800V

Product Depth (mm) :

32

Current - IEC :

24 A

Stripping Length :

8mm ~ 9mm

Height (Max) :

0.870 (22.10mm)

RoHS :

yes

EU RoHS :

Compliant

Number of Contacts :

4

Manufacturer :

Wago

Stripping length (max.) :

9mm

Base Product Number :

264

Housing Color :

Gray

Number of Rows :

2

Material Flammability Rating :

UL94 V-0
