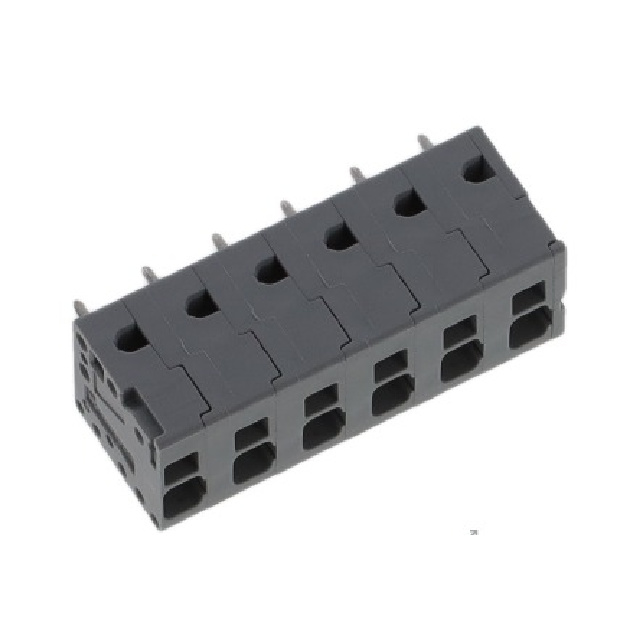

2624-3306

Manufacturer :

WAGO

Product Category :

Wire to Board

Automotive :

No

ECCN (US) :

EAR99

Approvals :

cURus;CSA

Packaging type :

Carton (box)

Operating Temperature :

-60°C ~ 105°C

Housing Material :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section multi-wired :

0.2 - 6

Positions Per Level :

6

Series :

-

Product Status :

Active

Package :

Box

Connection Type :

Spring Clamp

Clamp Material - Plating :

Steel - Nickel Plated

Rated surge voltage :

6

Rated current In :

32

Screw Thread :

-

Pitch :

0.295 (7.50mm)

Composition :

Polyamide

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 2.5

Pollution degree :

2

Type of fastening :

Solder

Manufacturer :

Wago

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge :

10-24 AWG

Mating Orientation :

Vertical with Board

Screw Material - Plating :

-

PPAP :

No

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

EU RoHS :

Compliant

RoHS :

yes

HTS :

8536.90.40.00

Voltage :

300 V

Current :

26 A

Connectable conductor cross section solid-core :

0.2 - 6

Height :

16.3

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Features :

-

Number of Poles :

6

Mounting Type :

PCB Mount

Over voltage category :

III

Pin Length :

4 MilliMeters

Color :

Gray

Number of Levels :

1

Temperature Range :

-76 to 221 Degrees F

Torque - Screw :

-

Wire Termination :

Screwless - Leg Spring, Push-In Spring
