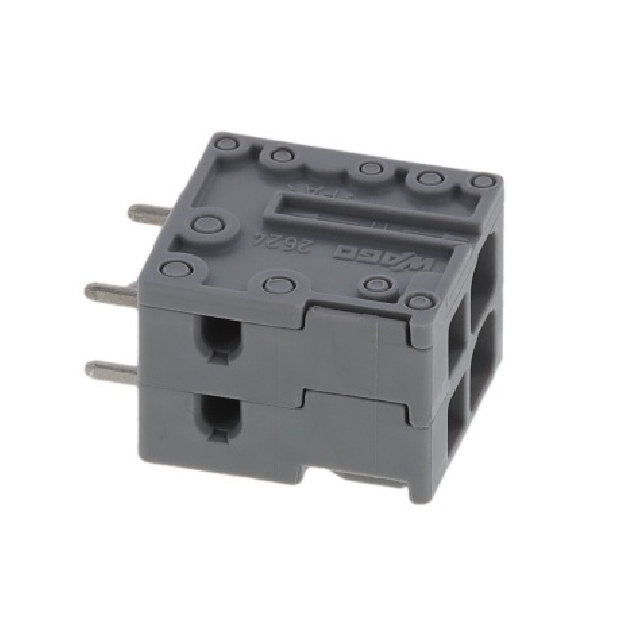

2624-3102

Manufacturer :

WAGO

Product Category :

Wire to Board

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Connection Type :

Spring Clamp

Pitch :

0.197 (5.00mm)

Features :

-

Product Status :

Active

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Package :

Box

Packaging :

Box

Screw Thread :

-

Mounting Type :

PCB Mount

Temperature Range :

-76 to 221 Degrees F

Approvals :

cURus;CSA

Rad Hardened :

No

Rated Voltage :

400V

Screw Material - Plating :

-

Torque - Screw :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Levels :

1

Operating Temperature :

-60°C ~ 105°C

Wire Gauge :

10-24 AWG

Number of Poles :

2

Current :

26 A

Series :

-

Manufacturer :

Wago

Rated Current :

32A

Color :

Gray

Wire Termination :

Screwless - Leg Spring, Push-In Spring

RoHS :

yes

Clamp Material - Plating :

Steel - Nickel Plated

Pin Length :

4 MilliMeters

Composition :

Polyamide

Reach Compliance Code :

Unknown

Mating Orientation :

Vertical with Board

Housing Color :

Grey

Voltage :

300 V

Positions Per Level :

2
