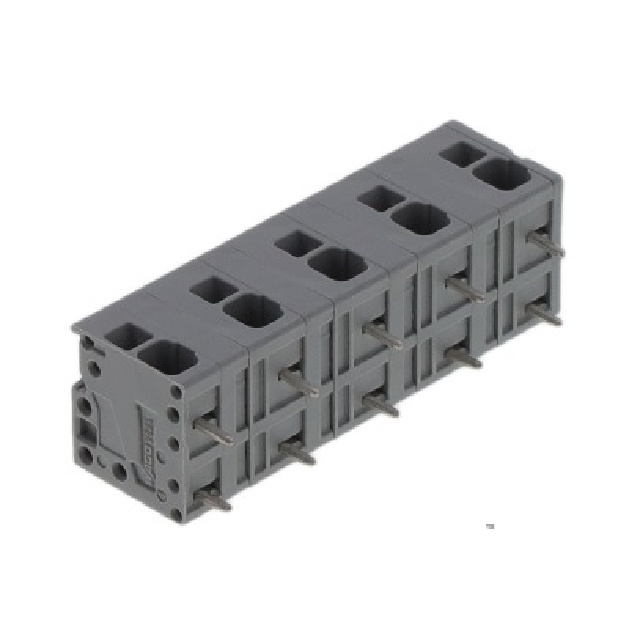

2624-1505

Manufacturer :

WAGO

Product Category :

Wire to Board

Current :

26 A

Connection Type :

Spring Clamp

Color :

Gray

Torque - Screw :

-

Pitch :

0.453 (11.50mm)

Type of fastening :

Solder

HTS :

8536.90.40.00

Pin Length :

4 MilliMeters

Positions Per Level :

5

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Inflammability class of insulation material according to with UL94 :

V0

Housing Material :

Polyamide (PA66), Nylon 6/6

Approvals :

cURus;CSA

Series :

-

PPAP :

No

Pollution degree :

2

Manufacturer :

Wago

Temperature Range :

-76 to 221 Degrees F

Package :

Box

ECCN (US) :

EAR99

Features :

-

Rated surge voltage :

8

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Wire Gauge :

10-24 AWG

Mating Orientation :

Horizontal with Board

Number of Levels :

1

Rated Current :

32A

Height :

15.4

Rated Voltage :

1kV

Connectable conductor cross section solid-core :

0.2 - 6

EU RoHS :

Compliant

Screw Material - Plating :

-

Rated current In :

41

Voltage :

600 V

Product Status :

Active

Operating Temperature :

-60°C ~ 105°C

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Number of Poles :

5

Screw Thread :

-

Mounting Type :

PCB Mount

Packaging type :

Carton (box)

Composition :

Polyamide

Clamp Material - Plating :

Steel - Nickel Plated

Connectable conductor cross section multi-wired :

0.2 - 0.6

Over voltage category :

III

RoHS :

yes

Automotive :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 6
