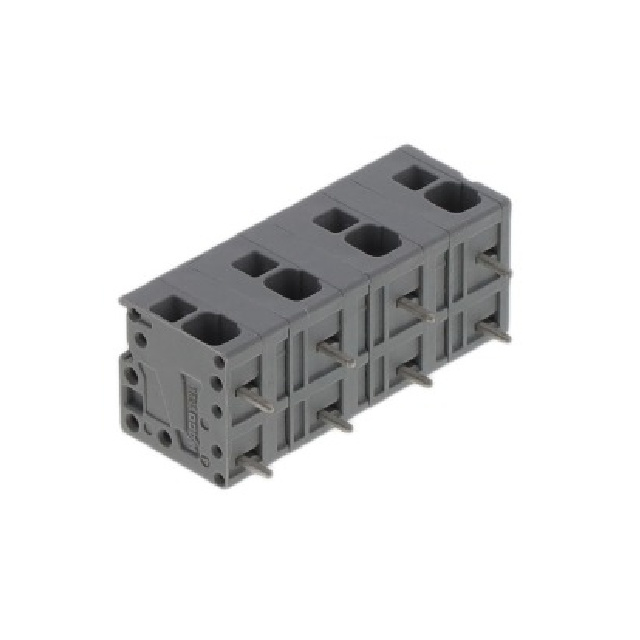

2624-1504

Manufacturer :

WAGO

Product Category :

Wire to Board

Composition :

Polyamide

Number of Poles :

4

Screw Material - Plating :

-

Features :

-

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Number of Levels :

1

Color :

Gray

Rated Current :

32A

Torque - Screw :

-

Operating Temperature :

-60°C ~ 105°C

Current :

26 A

Housing Material :

Polyamide (PA66), Nylon 6/6

Approvals :

cURus;CSA

Screw Thread :

-

Voltage :

600 V

Product Status :

Active

Package :

Box

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Rated Voltage :

1kV

RoHS :

yes

Series :

-

Wire Gauge :

10-24 AWG

Clamp Material - Plating :

Steel - Nickel Plated

Pin Length :

4 MilliMeters

Mounting Type :

PCB Mount

Mating Orientation :

Horizontal with Board

Pitch :

0.453 (11.50mm)

Manufacturer :

Wago

Connection Type :

Spring Clamp

Temperature Range :

-76 to 221 Degrees F

Positions Per Level :

4
