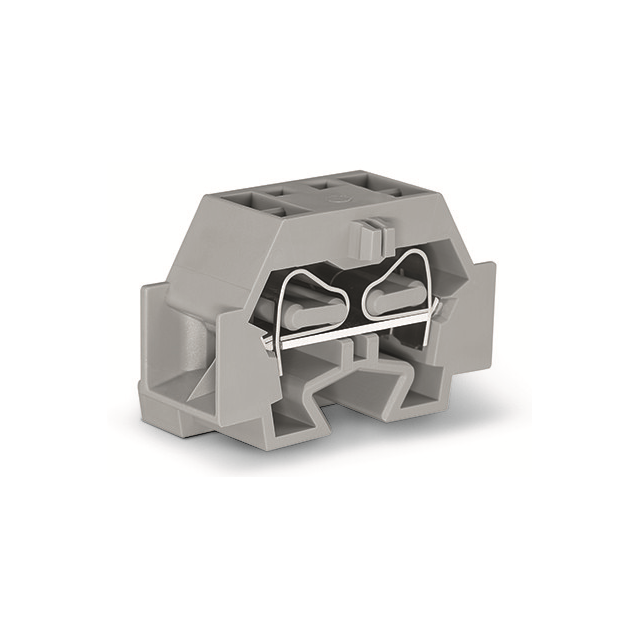

262-331

Manufacturer :

WAGO

Product Category :

Specialized

Product Height (mm) :

23(mm)

Type :

Terminal Block

Voltage Rating :

630 V

Wire Gauge or Range - mm² :

0.08-2.5mm²

Wire/Cable Gauge :

28 AWG

Clamp width :

12mm

Current - IEC :

32 A

Nominal voltage :

630V

Termination Style :

Push In, Spring

Nominal current - rounded value :

32A

Rated Voltage :

630V

Material - Insulation :

Polyamide (PA66), Nylon 6/6

AWG max. :

12

Number of Rows :

1

Lead Pitch :

12 mm

Number of Positions :

4

Height (Max) :

0.909 (23.09mm)

Length :

1.319 (33.50mm)

Cross section (flexible) (max.) :

4mm²

Rad Hardened :

No

Features :

+ sleeve

Mounting Type :

Direct Mount

Product Depth (mm) :

12(mm)

Cross section (inflexible) (min.) :

0.08mm²

Nominal current :

32A

Min. stripping length :

9mm

Flammability Rating :

UL94 V-0

Number of Contacts :

4(POS)

Voltage Rating (AC) :

630 V

Dim :

(W x H) 12 mm x 23 mm

Contamination level :

3

Housing Color :

Gray

Operating Voltage (Max) :

630V

Current Rating :

32 A

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-

Cross section (inflexible) (max.) :

4mm²

AWG (min.) :

28

Number of Contact Rows :

1

Wire Gauge or Range - AWG :

12-28 AWG

Number of Levels :

1

Terminal - Width :

12.0mm

Number of Pins :

4

Height :

23mm

Package :

Box

Series :

-

Stripping Length :

9mm ~ 10mm

Color :

Grey

REACH SVHC :

No SVHC

Manufacturer part # :

262-331

Mount :

DIN Rail

Current Rating (Max) :

32(A)

Industrial packaging :

yes

Product Length (mm) :

33.5(mm)

Pins per row :

4

Mounting Style :

Panel

Body Orientation :

RIGHT ANGLE

Content :

100pc(s)

Wire Gauge :

12-28(AWG)

No. of rows :

1

Stripping length (max.) :

10mm

Width :

12mm

RoHS :

Compliant

Voltage - IEC :

630 V

Connection :

Pull spring

Product Status :

Active

Packaging :

Box

Rated Current :

32A

Configuration :

L

Cross section (flexible) (min.) :

0.08mm²
