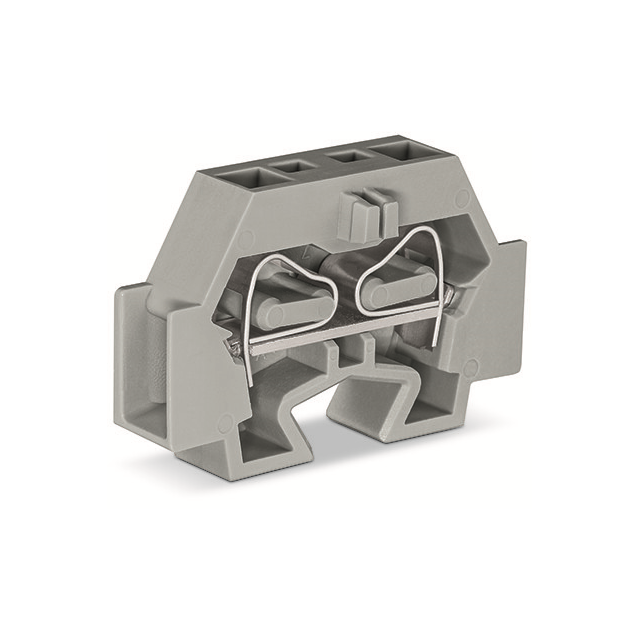

262-321

Manufacturer :

WAGO

Product Category :

Specialized

Termination Style :

Push In, Spring

Number of Positions :

2

RoHS :

yes

Current - IEC :

24 A

Rated Current :

24A

Cross section (flexible) (min.) :

0.08mm²

Terminal - Width :

7.0mm

Stripping Length :

9mm ~ 10mm

Color :

Gray

Nominal current :

24A

Manufacturer :

Wago

ECCN (US) :

EAR99

Height :

23mm

Height (Max) :

0.909 (23.09mm)

Manufacturer part # :

262-321

Width :

7mm

Wire Gauge or Range - AWG :

12-28 AWG

Configuration :

L

Housing Color :

Gray

AWG (min.) :

28

Contamination level :

3

Type :

262-321

Length :

1.319 (33.50mm)

PPAP :

No

Number of Levels :

1

Product Status :

Active

Connection :

Pull spring

Cross section (inflexible) (max.) :

4mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal current - rounded value :

24A

Features :

+ latch lock base

Number of Circuits :

1

No. of rows :

1

Operating Temperature :

-

Cross section (inflexible) (min.) :

0.08mm²

Automotive :

No

Wire Gauge or Range - mm² :

0.08-2.5mm²

Rated Voltage :

630V

Material Flammability Rating :

UL94 V-0

Mounting Type :

Flange, Snap-In

Pins per row :

2

Content :

100pc(s)

Voltage - IEC :

630 V

Dim :

(W x H) 7 mm x 23 mm

Approvals :

CSA, cURus

Clamp width :

7mm

Min. stripping length :

9mm

HTS :

8536.90.40.00

Stripping length (max.) :

10mm

AWG max. :

12

EU RoHS :

Compliant

Nominal voltage :

630V

Cross section (flexible) (max.) :

4mm²

Industrial packaging :

yes
