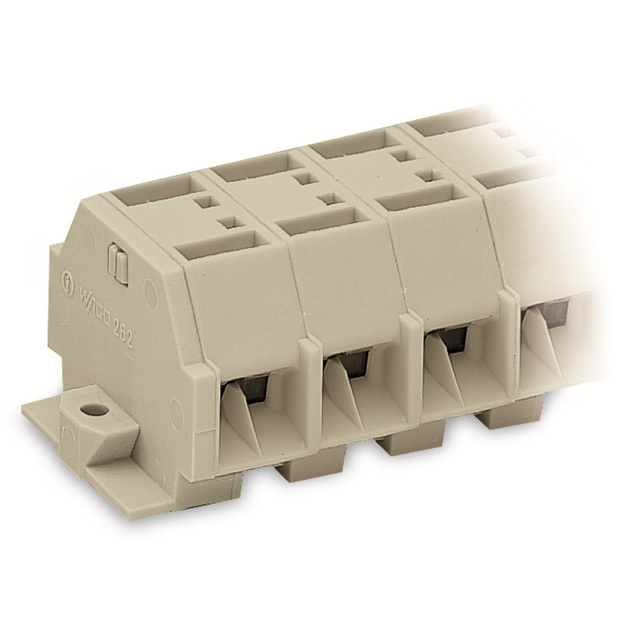

262-235

Manufacturer :

WAGO

Product Category :

Specialized

HTS :

8536.90.40.00

Type :

262-235

PPAP :

No

Width :

74.50mm

Manufacturer :

Wago

Nominal current - rounded value :

22A

Number of Levels :

1

Number of Poles :

5

Material Flammability Rating :

UL94 V-0

Housing Color :

Gray

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Nominal current :

22A

Stripping Length :

9mm ~ 10mm

Dim :

(W x H) 74.50 mm x 23 mm

Flammability Rating :

UL94 V-0

Number of Rows :

5

AWG (min.) :

20

Content :

100pc(s)

Approvals :

CSA, UR

Stripping length (max.) :

10mm

Length :

33.5

Configuration :

L

Industrial packaging :

yes

ECCN (US) :

EAR99

Height :

23mm

AWG max. :

12

Mounting Type :

Surface Mount

Wire Gauge or Range - mm² :

0.5-4mm²

Terminal - Width :

74.5mm

Connection :

Pull spring

Min. stripping length :

9mm

Cross section (flexible) (min.) :

0.50mm²

Pins per row :

4

Cross section (inflexible) (min.) :

0.50mm²

Transparent :

No

Cross section (flexible) (max.) :

4mm²

Height (Max) :

0.909 (23.09mm)

Color :

Gray

Inflammability class of insulation material according to with UL94 :

V0

Number of Pins :

20

Depth :

23.1

Cross section (inflexible) (max.) :

4mm²

RoHS :

yes

Wire Gauge or Range - AWG :

12-20 AWG

Connectable conductor cross section multi-wired :

0.08 - 4

Connection Type :

Spring Clamp

Manufacturer part # :

262-235

Operating Temperature :

-

Automotive :

No

No. of rows :

5

Product Status :

Active

Nominal voltage :

550V

Current Rating :

22 A

Clamp width :

12mm

Rated current In :

30

Connectable conductor cross section solid-core :

0.08 - 4

Termination Style :

Push In, Spring

Material - Insulation :

Polyamide (PA66), Nylon 6/6

EU RoHS :

Compliant

Number of Positions :

20

Features :

+ sleeve,Complies with ATEX Ex-e II standards
