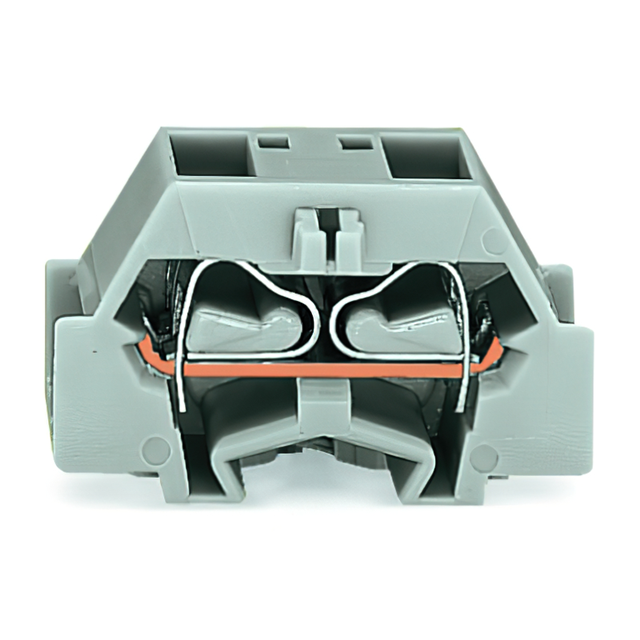

261-351

Manufacturer :

WAGO

Product Category :

Specialized

Connectable conductor cross section solid-core :

0.08 - 2.5

Number of Levels :

1

Weight :

3.597 g

Automotive :

No

Stripping Length :

8mm ~ 9mm

Current Rating :

24 A

Housing Color :

Gray

Number of Pins :

4

Color :

Gray

Approvals :

CSA, cURus

EU RoHS :

Compliant

HTS :

8536.90.40.00

Mounting :

Panel Mount

Series :

-

Voltage - IEC :

500 V

Wire Gauge or Range - AWG :

14-28 AWG

RoHS :

yes

Depth :

18.1

Operating Temperature :

-

Number of Rows :

4

Features :

-

Rated current In :

24

Number of Circuits :

1

Current - IEC :

24 A

Height (Max) :

0.713 (18.11mm)

Packaging :

Box

PPAP :

No

Flammability Rating :

UL94 V-0

Mount :

Screw

Transparent :

No

Connectable conductor cross section multi-wired :

0.08 - 2.5

Product Length (mm) :

10

Length :

28

Maximum Voltage Rating :

500V

Number of Contacts :

4

Product Depth (mm) :

28

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Inflammability class of insulation material according to with UL94 :

V0

Mounting Type :

Flange, Snap-In

Type :

Terminal Block

Width :

10

Wire Gauge or Range - mm² :

0.08-2.5mm²

Number of Positions :

4

Material Flammability Rating :

UL94 V-0

ECCN (US) :

EAR99

Maximum Current Rating (A) :

24

Product Status :

Active

Product Height (mm) :

18

Terminal - Width :

10.0mm

Package :

Box

Manufacturer :

Wago

Height :

28.1

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Termination Style :

Push In, Spring
