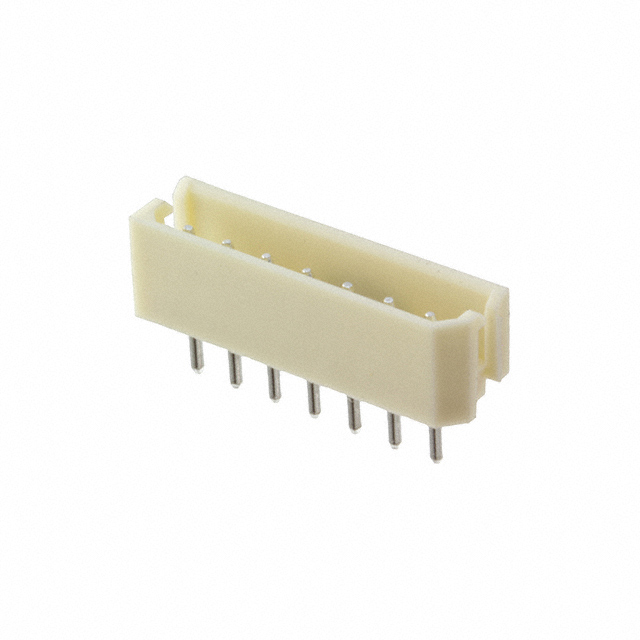

25SH-E-07-TS
Or copy the link below:
- Mfr.Part #
- 25SH-E-07-TS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 2.5MM
- Stock
- 2,425
- In Stock ：
- 2,425
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- PCB Contact Pattern :
- RECTANGULAR
- Operating Temperature :
- -40°C~105°C
- Reliability :
- COMMERCIAL
- Contact Type :
- Male Pin
- Current Rating (Amps) :
- 3A
- Number of Conductors :
- ONE
- Insulation Height :
- 0.232 5.90mm
- Fastening Type :
- Friction Lock
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Number of Rows :
- 1
- Dielectric Withstanding Voltage :
- 800VAC V
- Number Of PCB Rows :
- 1
- Termination :
- Solder
- Contact Shape :
- Circular
- Pitch - Mating :
- 0.098 2.50mm
- Reference Standard :
- UL, CSA
- Polarization Key :
- POLARIZED HOUSING
- Mating Contact Pitch :
- 0.098 inch
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 9 Weeks
- Contact Finish - Mating :
- Tin
- Mounting Option 1 :
- LOCKING
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Post :
- 0.138 3.50mm
- Series :
- 25SH
- Insulation Color :
- Beige
- Terminal Pitch :
- 2.4892mm
- Number of Positions :
- 7
- Packaging :
- Bulk
- Voltage - Rated :
- 250VAC
- Body Depth :
- 0.232 inch
- Contact Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 25SH-E-07-TS
25SH Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 7-Position Board to Cable/Wire 0.232 5.90mm Height
25SH-E-07-TS Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the 25SH Series of products.There is no operating temperature for the device.
25SH-E-07-TS Features
25SH series
25SH-E-07-TS Applications
There are a lot of Adam Tech
25SH-E-07-TS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
