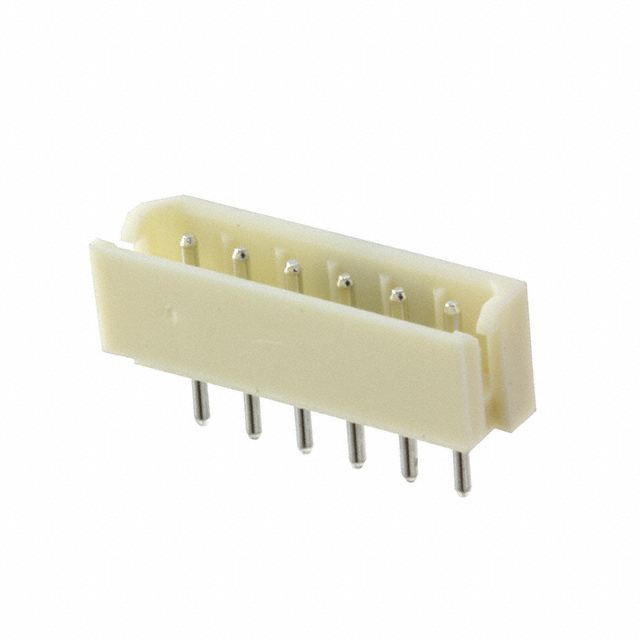

25SH-E-06-TS
Or copy the link below:
- Mfr.Part #
- 25SH-E-06-TS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 2.5MM
- Stock
- 2,600
- In Stock ：
- 2,600
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Voltage - Rated :
- 250VAC
- Number of Positions :
- 6
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- Reference Standard :
- UL, CSA
- Number of Rows :
- 1
- PCB Contact Pattern :
- RECTANGULAR
- Contact Shape :
- Circular
- Insulation Color :
- Beige
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Tin
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Through Hole
- Terminal Pitch :
- 2.4892mm
- Reliability :
- COMMERCIAL
- Connector Type :
- Header
- Mating Contact Pitch :
- 0.098 inch
- Fastening Type :
- Friction Lock
- Operating Temperature :
- -40°C~105°C
- Contact Length - Post :
- 0.138 3.50mm
- Body Depth :
- 0.232 inch
- Insulation Height :
- 0.232 5.90mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Withstanding Voltage :
- 800VAC V
- Mounting Option 1 :
- LOCKING
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Number of Conductors :
- ONE
- Pitch - Mating :
- 0.098 2.50mm
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Factory Lead Time :
- 9 Weeks
- Number Of PCB Rows :
- 1
- Current Rating (Amps) :
- 3A
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Contact Material :
- Brass
- Series :
- 25SH
- Polarization Key :
- POLARIZED HOUSING
- Datasheets
- 25SH-E-06-TS
25SH-E-06-TS Documents
25SH Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 6-Position Board to Cable/Wire 0.232 5.90mm Height
25SH-E-06-TS Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the 25SH Series, it belongs to the range of products of that series.-40°C~105°C Operating Temperature is the default operating temperature for the device.
25SH-E-06-TS Features
25SH series
25SH-E-06-TS Applications
There are a lot of Adam Tech
25SH-E-06-TS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
