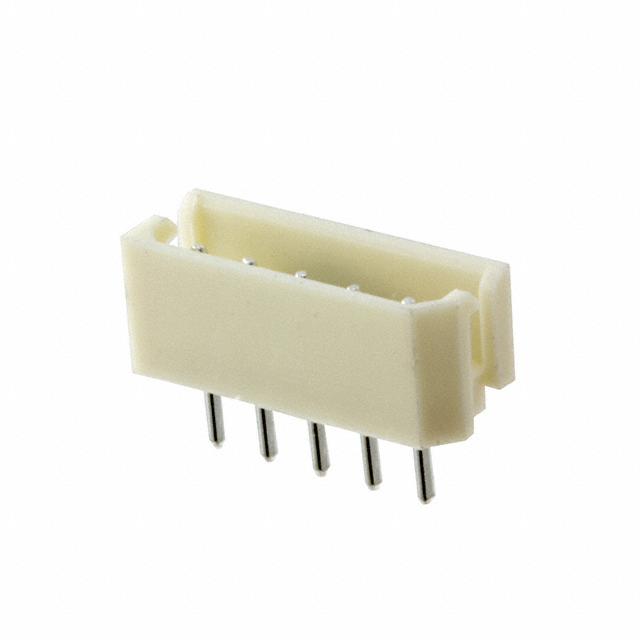

25SH-E-05-TS
Or copy the link below:
- Mfr.Part #
- 25SH-E-05-TS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 2.5MM
- Stock
- 2,782
- In Stock ：
- 2,782
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Beige
- Number of Rows :
- 1
- Factory Lead Time :
- 9 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Depth :
- 0.232 inch
- Contact Length - Post :
- 0.138 3.50mm
- Contact Type :
- Male Pin
- Mounting Option 1 :
- LOCKING
- Operating Temperature :
- -40°C~105°C
- Packaging :
- Bulk
- Number Of PCB Rows :
- 1
- PCB Contact Pattern :
- RECTANGULAR
- Connector Type :
- Header
- Terminal Pitch :
- 2.4892mm
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.098 2.50mm
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Contact Shape :
- Circular
- Reference Standard :
- UL, CSA
- Shrouding :
- Shrouded - 4 Wall
- Mating Contact Pitch :
- 0.098 inch
- Reliability :
- COMMERCIAL
- Current Rating (Amps) :
- 3A
- Termination :
- Solder
- Series :
- 25SH
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Dielectric Withstanding Voltage :
- 800VAC V
- Insulation Height :
- 0.232 5.90mm
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Number of Conductors :
- ONE
- Polarization Key :
- POLARIZED HOUSING
- Voltage - Rated :
- 250VAC
- Number of Positions :
- 5
- Fastening Type :
- Friction Lock
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 25SH-E-05-TS
25SH Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 5-Position Board to Cable/Wire 0.232 5.90mm Height
25SH-E-05-TS Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 25SH Series.In this case, the device operates at -40°C~105°C Operating Temperature.
25SH-E-05-TS Features
25SH series
25SH-E-05-TS Applications
There are a lot of Adam Tech
25SH-E-05-TS Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
