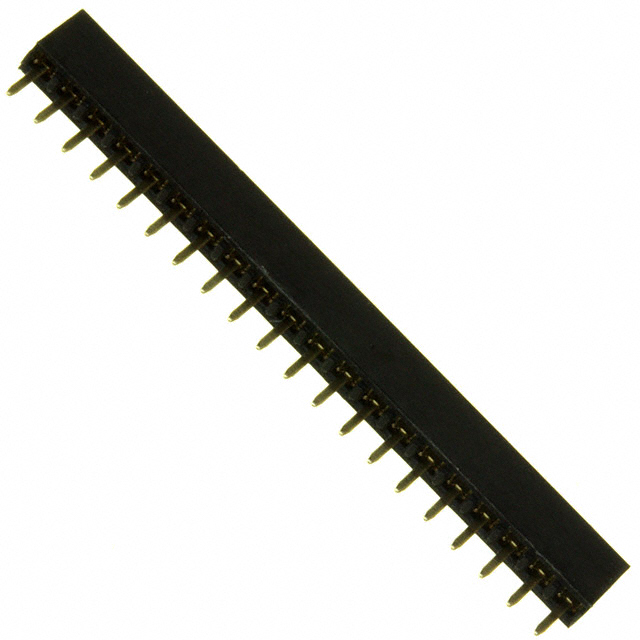

25632001RP2
Or copy the link below:
- Mfr.Part #
- 25632001RP2
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 20POS 0.079 GOLD PCB
- Stock
- 23,172
- In Stock ：
- 23,172
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Plating :
- Gold
- Mount :
- Through Hole
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Lead Free :
- Lead Free
- Series :
- 2563
- Width :
- 2.39mm
- RoHS Status :
- ROHS3 Compliant
- Pitch :
- 2.0066mm
- Insulation Material :
- Thermoplastic, Glass Filled
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Factory Lead Time :
- 14 Weeks
- Contact Material :
- Phosphor Bronze
- Packaging :
- Tray
- Length :
- 40.1mm
- Operating Temperature :
- -40°C~105°C
- Contact Gender :
- FEMALE
- Connector Type :
- Receptacle
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- 1A
- Number of Rows :
- 1
- Fastening Type :
- Push-Pull
- Color :
- Black
- Contact Shape :
- Square
- Pitch - Mating :
- 0.079 2.00mm
- Insulation Height :
- 0.169 4.30mm
- Lead Pitch :
- 2mm
- Mounting Type :
- Through Hole
- Current Rating :
- 1A
- Housing Color :
- Black
- Published :
- 2007
- Contact Finish Thickness - Mating :
- Flash
- Contact Finish - Mating :
- Gold
- Insulation Color :
- Black
- Contact Type :
- Female Socket
- Gender :
- FEMALE
- Number of Contacts :
- 20
- Contact Length - Post :
- 0.098 2.50mm
- Housing Material :
- Nylon
- Number of Positions :
- 20
- Height :
- 4.29mm
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 500V
- Datasheets
- 25632001RP2
25632001RP2 Documents
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tray Gold Thermoplastic, Glass Filled 20 Positions Female Socket
25632001RP2 Overview
This product is packaged in a Receptacle carton.Through Hole is the mounting type for the device.The product is packaged in a Tray case.It's part of the 2563 Series.Mounting of the part is based on Through Hole.It runs at -40°C~105°C Operating Temperature.
25632001RP2 Features
2563 series
25632001RP2 Applications
There are a lot of NorComp Inc.
25632001RP2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
