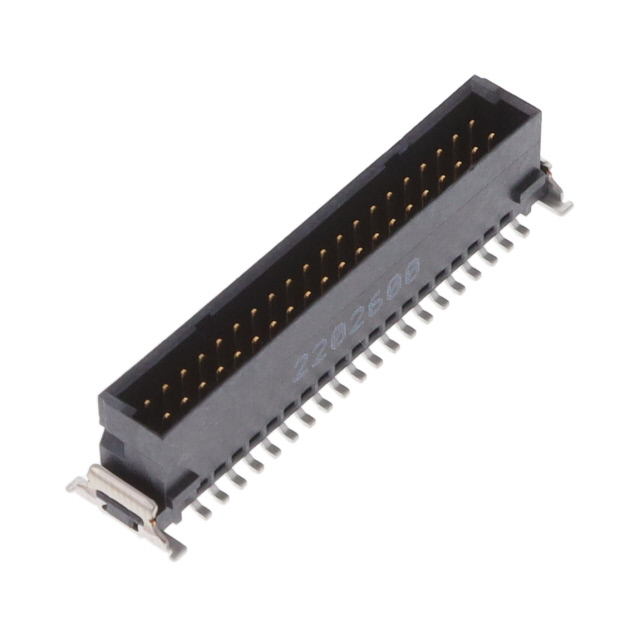

254590
Or copy the link below:
- Mfr.Part #
- 254590
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- 40-PIN, VERTICAL, SMT
- Stock
- 279
- In Stock ：
- 279
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Headers, Male Pins
- Insulation Resistance :
- 10000000000 Ω
- Mounting Type :
- BOARD
- Dielectric Withstanding Voltage :
- 700VAC V
- Board Mounting Option :
- PEG
- PCB Contact Pattern :
- RECTANGULAR
- Contact Gender :
- Male
- Reach Compliance Code :
- Compliant
- Contact Pattern :
- RECTANGULAR
- Contact Resistance :
- 25 mΩ
- Terminal Pitch :
- 1.27 mm
- Mating Contact Pitch :
- 0.05 inch
- PCB Contact Row Spacing :
- 5.5118 mm
- Contact Style :
- SQ PIN-SKT
- Connector Type :
- BOARD STACKING CONNECTOR
- Body Depth :
- 0.299 inch
- Body Breadth :
- 0.276 inch
- Rated Current (Signal) :
- 1.7 A
- Polarization Key :
- POLARIZED HOUSING
- Mounting Option 1 :
- LOCKING
- Termination Type :
- Surface Mount
- Number Of PCB Rows :
- 2
- Reference Standard :
- UL, CSA
- Total Number of Contacts :
- 40
- Reliability :
- COMMERCIAL
- Contact Material :
- NOT SPECIFIED
- Mating Contact Row Spacing :
- 0.05 inch
- Durability :
- 500 Cycles
- Mounting Style :
- Straight
- Datasheets
- 254590
