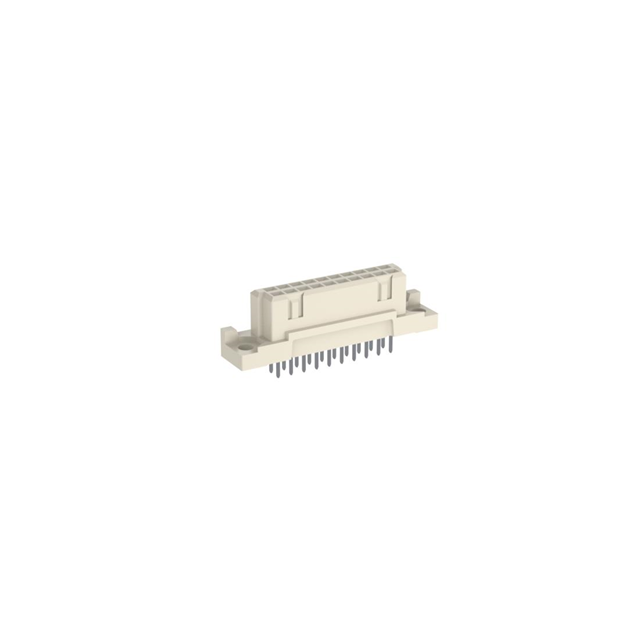

254370
Or copy the link below:
- Mfr.Part #
- 254370
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- DIN B3 20POS F SLDR 4.0MM CL2
- Stock
- 107
- In Stock ：
- 107
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- DIN 41612
- Min Operating Temperature :
- -55 °C
- Mounting Style :
- Through Hole
- Type :
- DIN 41612
- Depth :
- 8.1 mm
- Termination Method :
- Solder
- Product Height (mm) :
- 11.6(mm)
- RoHS Status :
- RoHS Compliant
- Operating Temp Range :
- -55C to 125C
- Number of Rows :
- 2
- Current Rating :
- 2 A
- Max Current Rating :
- 2 A
- Current Rating (Max) :
- 2(A)
- Orientation :
- Straight
- Contact Material :
- COPPER ALLOY
- Product Depth (mm) :
- 8.1(mm)
- Housing Material :
- PBT
- Termination :
- Solder
- Gender :
- FEMALE
- Max Operating Temperature :
- 125 °C
- Pitch (mm) :
- 2.54(mm)
- Connector Type :
- Connector
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Length :
- 39.76 mm
- Number of Pins :
- 20
- Contact Plating :
- Gold
- Contact Resistance :
- 20 mΩ
- Lifecycle Status :
- Production (Last Updated: 4 months ago)
- Product Length (mm) :
- 39.76(mm)
- Body Orientation :
- Straight
- Number of Contact Rows :
- 2
- Number of Contacts :
- 20
- Pitch :
- 2.54 mm
- Contact Resistance Max :
- 20(mohm)
- Datasheets
- 254370
254370 Documents
254370 datasheet pdf and Backplane Connectors - DIN 41612 product details from ERNI stock available at Xinshop
