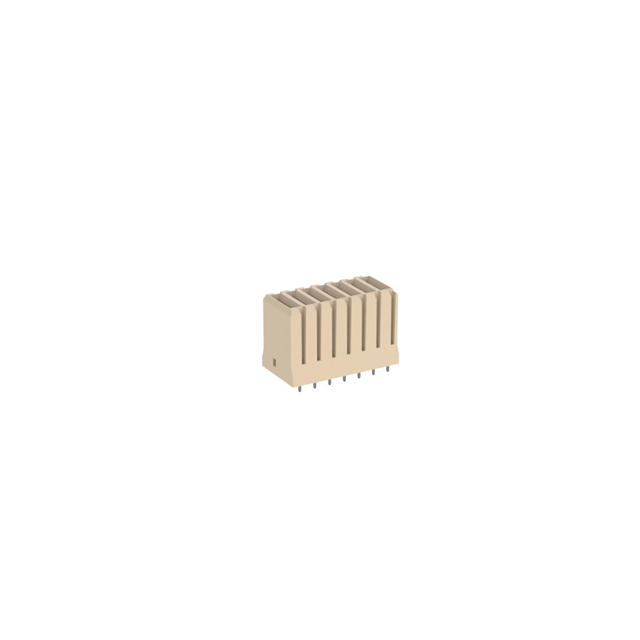

254016
Or copy the link below:
- Mfr.Part #
- 254016
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- 2MM HM 7POS F PWR MOD CL1
- Stock
- 7,308
- In Stock ：
- 7,308
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Specialized
- Mounting Style :
- Straight
- Subcategory :
- Headers and Edge Type Connectors
- Terminal Length :
- 0.146 inch
- Manufacturer :
- ERNI
- Mixed Contacts :
- No
- Body/Shell Style :
- PLUG
- Option :
- GENERAL PURPOSE
- Insulation Resistance :
- 10000000000 Ω
- Reach Compliance Code :
- Compliant
- Mounting Option 1 :
- LOCKING
- HTS Code :
- 8536.69.40.30
- Plating Thickness :
- 47u inch
- Insertion Force-Max :
- 5.7824 N
- Durability :
- 500 Cycles
- MIL Conformance :
- No
- DIN Conformance :
- No
- Filter Feature :
- No
- Termination Type :
- Press Fit
- Contact Gender :
- FEMALE
- IEC Conformance :
- No
- Insulator Color :
- Gray
- Reliability :
- COMMERCIAL
- Contact Finish Termination :
- Matte Tin (Sn) - with Nickel (Ni) barrier
- Connector Type :
- RECTANGULAR POWER CONNECTOR
- Empty Shell :
- No
- Dielectric Withstanding Voltage :
- 1400VAC V
- Contact Resistance :
- 5 mΩ
- Body Breadth :
- 0.392 inch
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Body Depth :
- 0.478 inch
- Total Number of Contacts :
- 7
- Contact Material :
- Phosphor Bronze
- Rated Current (Signal) :
- 10.5 A
- Contact Arrangement :
- S0P7
- Mounting Type :
- BOARD
- Reference Standard :
- UL
- JESD-609 Code :
- e3
- Shell Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
- Datasheets
- 254016
