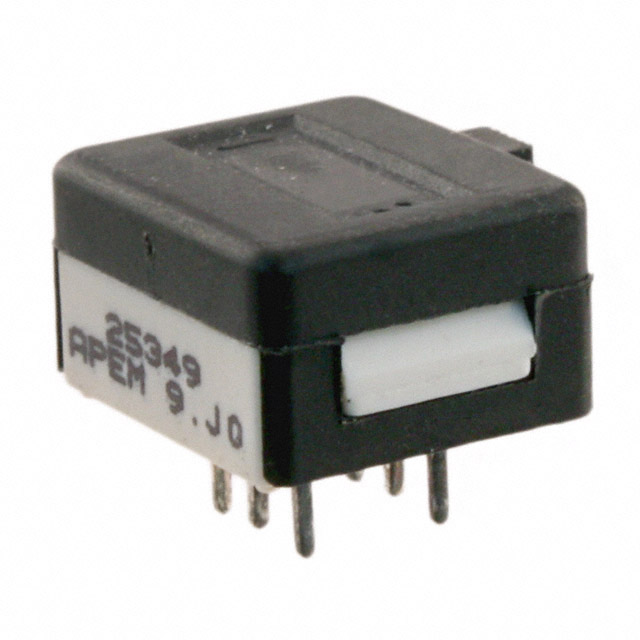

25349NA

Manufacturer :

APEM Inc.

Product Category :

Mounting Type :

Through Hole, Right Angle

Current Rating :

1A

Solderability :

WAVE

Number of Positions :

2

Insulation Material :

Thermoplastic

Switch Travel :

4.00mm

Mount :

PCB, Through Hole

Mechanical Life :

20,000 Cycles

Orientation :

RIGHT ANGLE

Feature :

Epoxy Sealed Terminals

Actuator Material :

Polyamide (PA), Nylon, Glass Filled

Contact Voltage(AC)-Max :

250V

ECCN Code :

EAR99

Packaging :

Bulk

Number of Pins :

3

Housing Material :

Glass Filled Nylon

Body Height :

8.1mm

Circuit :

DPDT

Termination :

PC Pin

Length - Termination :

0.15 inch

RoHS Status :

ROHS3 Compliant

Electrical Life :

10,000 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Hole Count :

6

Washability :

Partial

Voltage - Rated DC :

30V

Series :

25000N

Contact Current Rating :

1A

Dielectric Withstanding Voltage :

1000VRMS V

Actuator Type :

Standard

Body Breadth :

12.5 mm

Switch Function :

On-Off-On

Body Length or Diameter :

14.1mm

Operating Temperature :

-40°C~85°C

Contact (AC) Max Rating R Load :

2A@250VAC

Contact Timing :

NOT SPECIFIED

Factory Lead Time :

9 Weeks

Sealing :

EPOXY TERMINAL SEALED

Termination Style :

PC Pin

Current Rating (Amps) :

4A AC 1A DC

Contact Current(AC)-Max :

2A

Insulation Resistance :

1000000000Ohm

Actuator Length :

2.30mm

Contact Current(DC)-Max :

1A

Contact Material :

Silver (Ag)

Switch Type :

SLIDE SWITCH

Voltage - Rated AC :

125V

Contact Resistance :

10MOhm
