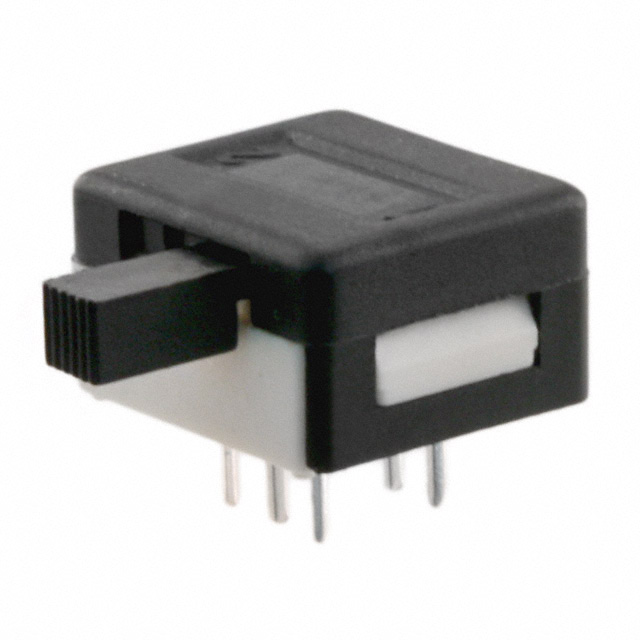

25346NA6

Manufacturer :

APEM Inc.

Product Category :

Termination :

PC Pin

Number of Positions :

2

Switch Function :

On-On

Circuit :

DPDT

Orientation :

RIGHT ANGLE

Factory Lead Time :

9 Weeks

Switch Travel :

4.00mm

Insulation Resistance :

1000000000Ohm

Housing Material :

Glass Filled Nylon

Voltage - Rated DC :

30V

Max Voltage Rating (DC) :

30V

Body Breadth :

7.493 mm

Body Height :

17.8054mm

Insulation Material :

Thermoplastic

Max Voltage Rating (AC) :

250V

Electrical Life :

10,000 Cycles

Actuator Length :

6.00mm

PCB Hole Count :

6

Series :

25000N

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Timing :

NOT SPECIFIED

Voltage - Rated AC :

125V

Actuator Type :

Standard

Solderability :

WAVE

Mechanical Life :

20,000 Cycles

Contact Current(DC)-Max :

3A

Packaging :

Bulk

Termination Style :

PC Pin

Feature :

Epoxy Sealed Terminals

Operating Temperature :

-40°C~85°C

Washability :

Partial

Body Length or Diameter :

14.097mm

Length - Termination :

0.15 inch

Dielectric Withstanding Voltage :

1000VRMS V

Contact Material :

Silver (Ag)

Actuator Material :

Polyamide (PA), Nylon, Glass Filled

Contact (DC) Max Rating R Load :

3A@30VDC

RoHS Status :

ROHS3 Compliant

Contact Resistance :

10MOhm

Current Rating (Amps) :

4A AC 1A DC

Contact (AC) Max Rating R Load :

2A@250VAC

Current Rating :

1A

Contact Current(AC)-Max :

2A

Mounting Type :

Through Hole, Right Angle

Mount :

Through Hole
