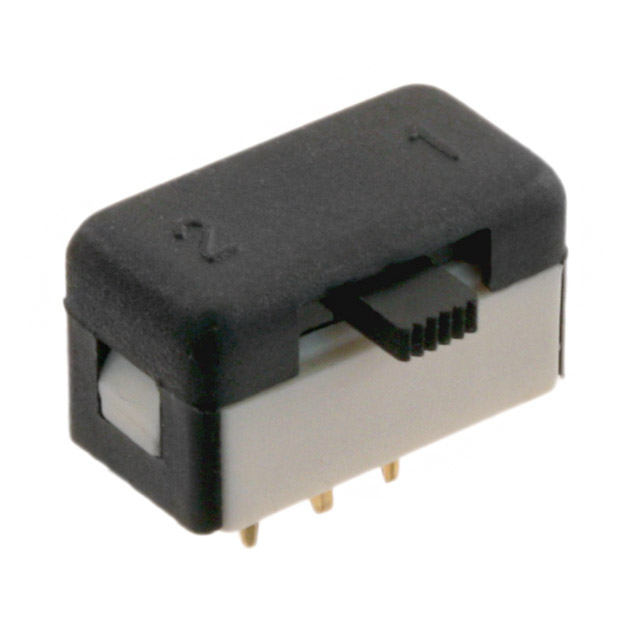

25339NLD

Manufacturer :

APEM Inc.

Product Category :

Termination :

PC Pin

Packaging :

Bulk

Washability :

Partial

Electrical Life :

10,000 Cycles

Mechanical Life :

20,000 Cycles

Body Breadth :

7.5 mm

Contact Current Rating :

100mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

2

HTS Code :

8536.50.90.50

Contact Finish :

Gold

Contact Resistance :

50mOhm

Contact (DC) Max Rating R Load :

.1A@30VDC

Insulation Material :

Thermoplastic

Operating Temperature :

-40°C~85°C

Factory Lead Time :

9 Weeks

Max Voltage Rating (DC) :

30V

Current Rating (Amps) :

100mA DC

Mount :

PCB, Through Hole

Termination Style :

PC Pin

Voltage - Rated AC :

30V

Switch Travel :

4.00mm

Body Height :

8.1mm

Switch Type :

SLIDE SWITCH

Feature :

Epoxy Sealed Terminals

Switch Function :

On-Off-On

Series :

25000N

Insulation Resistance :

1000000000Ohm

Sealing :

EPOXY TERMINAL SEALED

Dielectric Withstanding Voltage :

1000VRMS V

Max Voltage Rating (AC) :

50mV

Actuator Type :

Standard

Voltage - Rated DC :

30V

Actuator Length :

2.30mm

Current Rating :

100mA

ECCN Code :

EAR99

Actuator Material :

Polyamide (PA), Nylon, Glass Filled

Contact Current(DC)-Max :

0.1A

Contact Timing :

NOT SPECIFIED

Orientation :

RIGHT ANGLE

RoHS Status :

ROHS3 Compliant

Housing Material :

Glass Filled Nylon

Length - Termination :

0.15 inch

Body Length or Diameter :

14.1mm

Contact Material :

Brass

Circuit :

SPDT

Mounting Type :

Through Hole, Right Angle

Solderability :

WAVE

PCB Hole Count :

3
