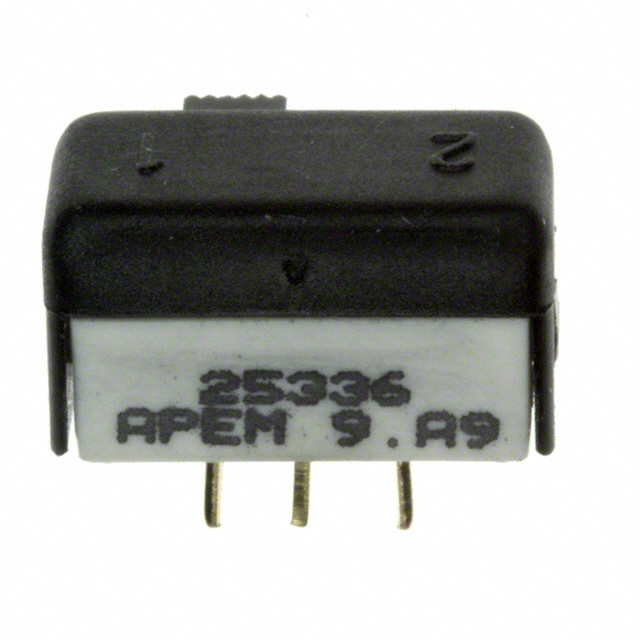

25336NLD
- Mfr.Part #
- 25336NLD
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 100MA 30V
- Stock
- 100
- In Stock :
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Contact Finish :
- Gold
- Body Length or Diameter :
- 14.1mm
- Contact Material :
- Brass
- Contact Timing :
- NOT SPECIFIED
- Feature :
- Epoxy Sealed Terminals
- Factory Lead Time :
- 9 Weeks
- Dielectric Withstanding Voltage :
- 1000VRMS V
- Mechanical Life :
- 20,000 Cycles
- Series :
- 25000N
- Number of Positions :
- 2
- Voltage - Rated AC :
- 30V
- Number of Pins :
- 2
- Sealing :
- EPOXY TERMINAL SEALED
- Body Height :
- 8.1mm
- Termination Style :
- PC Pin
- Voltage - Rated DC :
- 30V
- Contact Resistance :
- 50mOhm
- Switch Type :
- SLIDE SWITCH
- Washability :
- Partial
- Switch Function :
- On-On
- Switch Travel :
- 4.00mm
- Actuator Length :
- 2.30mm
- Insulation Material :
- Thermoplastic
- Circuit :
- SPDT
- Body Breadth :
- 7.5 mm
- Current Rating (Amps) :
- 100mA DC
- Operating Temperature :
- -40°C~85°C
- Length - Termination :
- 0.15 inch
- Packaging :
- Bulk
- PCB Hole Count :
- 3
- Insulation Resistance :
- 1000000000Ohm
- Electrical Life :
- 10,000 Cycles
- Actuator Type :
- Standard
- Current Rating :
- 100mA
- Contact (DC) Max Rating R Load :
- .1A@30VDC
- HTS Code :
- 8536.50.90.50
- Contact Current Rating :
- 100mA
- Termination :
- PC Pin
- Contact Current(DC)-Max :
- 0.1A
- Mount :
- PCB, Through Hole
- Solderability :
- WAVE
- Housing Material :
- Glass Filled Nylon
- Mounting Type :
- Through Hole, Right Angle
- Orientation :
- RIGHT ANGLE
- Max Voltage Rating (DC) :
- 30V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Max Voltage Rating (AC) :
- 50mV
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Datasheets
- 25336NLD
