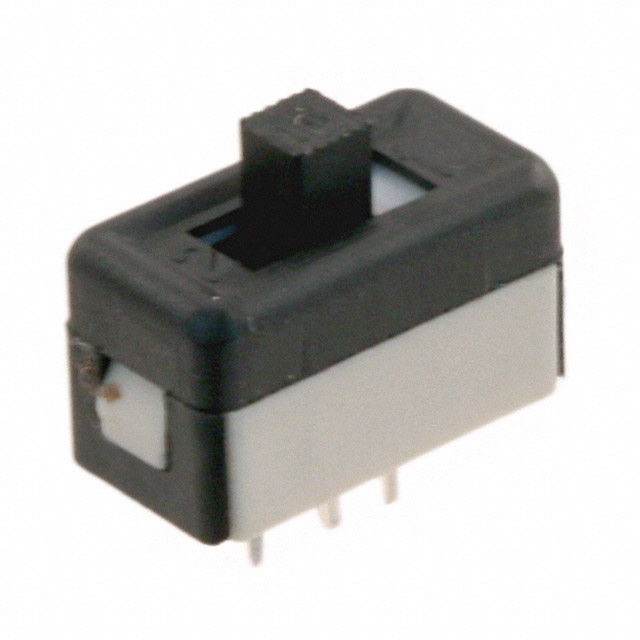

25139NAH
Or copy the link below:
- Mfr.Part #
- 25139NAH
- Manufacturer
- APEM Inc.
- Package / Case
- 125
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 4A 125V
- Stock
- 7,390
- In Stock ：
- 7,390
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Switch Function :
- On-Off-On
- Current Rating (Amps) :
- 4A AC 1A DC
- Actuator Type :
- Standard
- ECCN Code :
- EAR99
- Circuit :
- SPDT
- Orientation :
- Vertical
- Mount :
- PCB, Through Hole
- Operating Temperature :
- -40°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Hole Count :
- 3
- Dielectric Withstanding Voltage :
- 1000VRMS V
- Contact Material :
- Silver (Ag)
- Body Breadth :
- 7.493 mm
- Contact (DC) Max Rating R Load :
- 3A@30VDC
- Package / Case :
- 125
- Body Length or Diameter :
- 14.097mm
- Feature :
- Epoxy Sealed Terminals
- Electrical Life :
- 10,000 Cycles
- Illumination Type :
- Non-Illuminated
- Contact Current(DC)-Max :
- 3A
- Voltage - Rated AC :
- 125V
- Body Height :
- 14.7066mm
- Contact Plating :
- Silver
- Max Voltage Rating (AC) :
- 250V
- RoHS Status :
- ROHS3 Compliant
- Mechanical Life :
- 20,000 Cycles
- Switch Travel :
- 4.00mm
- Contact Timing :
- NOT SPECIFIED
- Insulation Resistance :
- 1000000000Ohm
- Number of Positions :
- 2
- Current Rating :
- 1A
- Housing Material :
- Glass Filled Nylon
- Mounting Type :
- Through Hole
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Max Voltage Rating (DC) :
- 30V
- Insulation Material :
- Thermoplastic
- Contact Current(AC)-Max :
- 2A
- Series :
- 25000N
- Length - Termination :
- 0.15 inch
- Contact (AC) Max Rating R Load :
- 2A@250VAC
- Factory Lead Time :
- 5 Weeks
- Termination Style :
- PC Pin
- Voltage - Rated DC :
- 30V
- REACH SVHC :
- No SVHC
- Termination :
- PC Pin
- Solderability :
- WAVE
- Packaging :
- Bulk
- Contact Current Rating :
- 4A
- Actuator Length :
- 2.80mm
- Contact Resistance :
- 10MOhm
- Washability :
- Partial
- Datasheets
- 25139NAH
25139NAH Documents
25139NAH datasheet pdf and Slide Switches product details from APEM Inc. stock available at
This switch is ideal for applications that require a reliable, long-lasting switch with a simple ON-OFF-ON configuration. It can be used in a variety of applications, including industrial control systems, automotive electronics, and consumer electronics. The switch is also suitable for use in applications that require a high number of cycles, such as gaming consoles and other devices that require frequent switching.
