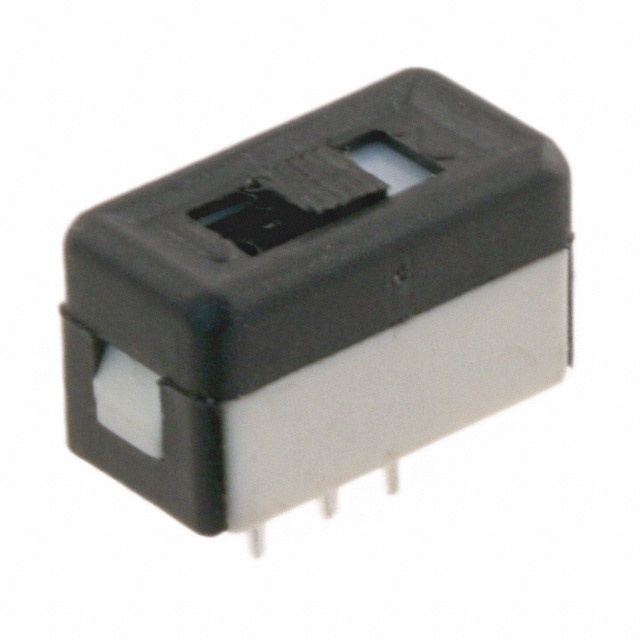

25139NAB
Or copy the link below:
- Mfr.Part #
- 25139NAB
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 4A 125V
- Stock
- 356
- In Stock ：
- 356
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Actuator Type :
- Flush
- Current Rating :
- 1A
- Voltage - Rated AC :
- 125V
- Feature :
- Epoxy Sealed Terminals
- Insulation Resistance :
- 1000000000Ohm
- Mechanical Life :
- 20,000 Cycles
- Dielectric Withstanding Voltage :
- 1000VRMS V
- REACH SVHC :
- No SVHC
- PCB Hole Count :
- 3
- Washability :
- Partial
- Contact (AC) Max Rating R Load :
- 2A@250VAC
- Circuit :
- SPDT
- Contact Voltage(AC)-Max :
- 250V
- Body Length or Diameter :
- 14.097mm
- Termination :
- PC Pin
- Series :
- 25000N
- Electrical Life :
- 10,000 Cycles
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Length - Termination :
- 0.15 inch
- Housing Material :
- Glass Filled Nylon
- Termination Style :
- PC Pin
- Switch Function :
- On-Off-On
- Solderability :
- WAVE
- Mounting Type :
- Through Hole
- Operating Temperature :
- -40°C~85°C
- Orientation :
- Vertical
- Contact Timing :
- NOT SPECIFIED
- Factory Lead Time :
- 9 Weeks
- Contact Current(AC)-Max :
- 2A
- Contact Material :
- Silver (Ag)
- Contact Current Rating :
- 1A
- Current Rating (Amps) :
- 4A AC 1A DC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- PCB, Through Hole
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 30V
- Insulation Material :
- Thermoplastic
- Body Height :
- 11.9126mm
- Switch Travel :
- 4.00mm
- Contact Plating :
- Silver
- Contact Current(DC)-Max :
- 3A
- Number of Pins :
- 3
- Number of Positions :
- 2
- Contact Resistance :
- 10MOhm
- Datasheets
- 25139NAB
