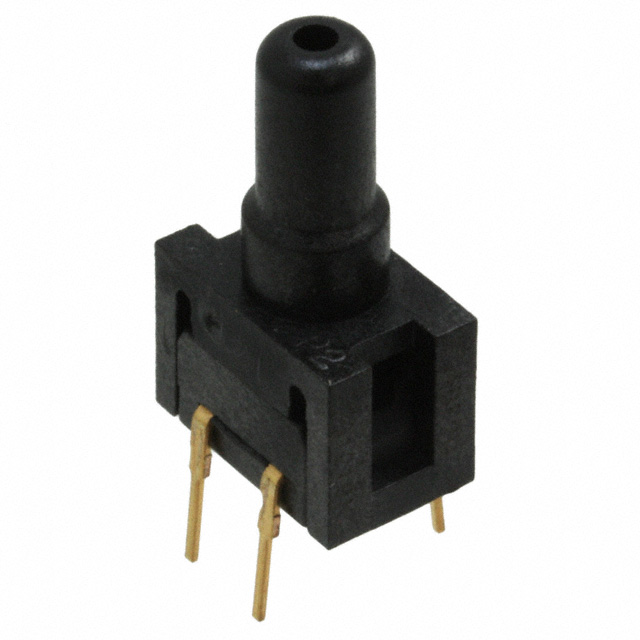

24PCBFA2G
Or copy the link below:
- Mfr.Part #
- 24PCBFA2G
- Manufacturer
- Honeywell Sensing and Productivity Solutions
- Package / Case
- 4-DIP Module
- Datasheet
- Download
- Description
- SENSOR PRESS GAUGE 5.0 PSI
- Stock
- 16,163
- In Stock ：
- 16,163
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Honeywell Sensing and Productivity Solutions
- Product Category :
- Pressure Sensors, Transducers
- Maximum Pressure :
- ±20PSI (±137.9kPa)
- Weight :
- 2G
- Reach Compliance Code :
- Unknown
- Pressure Range-Max :
- 5 psi
- Sensors/Transducers Type :
- PRESSURE SENSOR,PEIZORESISTIVE
- Applications :
- Board Mount
- Output :
- 0 mV ~ 115 mV (10V)
- Termination Style :
- PC Pin
- Package / Case :
- 4-DIP Module
- Operating Temperature :
- -40°C~85°C
- Termination :
- PC Pin
- Number of Pins :
- 4
- Factory Lead Time :
- 8 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Breadth :
- 8.38 mm
- Port Size :
- Male - 0.25 6.4mm Tube
- Output Type :
- Wheatstone Bridge
- Linearity :
- 1 %
- Operating Pressure :
- ±5PSI (±34.47kPa)
- Body Length or Diameter :
- 12.7mm
- RoHS Status :
- RoHS Compliant
- Accuracy :
- ±1%
- Pbfree Code :
- No
- Pressure Type :
- Compound
- Offset-Nom :
- 0MV
- Voltage - Supply :
- 10V~12V
- Port Style :
- Barbless
- Operating Supply Voltage :
- 10V
- Series :
- 24pC
- Resistance :
- 6kOhm
- Pressure Sensing Mode :
- Gage
- Mount :
- Through Hole
- Published :
- 1998
- Response Time :
- 1 ms
- Datasheets
- 24PCBFA2G
24PC Series Compound Pressure Sensor Wheatstone Bridge -40°C~85°C ±5PSI (±34.47kPa) Barbless ±1% 0 mV ~ 115 mV (10V) 10V~12V
24PCBFA2G Overview
In order to make your life easier, a 4-DIP Module package includes this transducer. If you want reliable results, you should set the transducers' temperature to -40°C~85°C. Supply voltages as low as 10V~12V work well with the transducers. 4 pins must be connected in order for the transducer to work properly. A transducer of this type is capable of measuring pressures up to 5 Psi.
24PCBFA2G Features
Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: 4-DIP Module
Operating Temperature: -40°C~85°C
4 Pins
24PC series
Operating Pressure: ±5PSI (±34.47kPa)
Operating Supply Voltage: 10V
24PCBFA2G Applications
There are a lot of Honeywell Sensing and Productivity Solutions
24PCBFA2G Transducers applications.
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
- Refrigerant pressure monitoring in HVAC/R systems
- Dry air system pressure, process controls and automation
- Dry air system monitoring
- Hydraulic, brake, and engine oil fluid pressure monitoring
- Air brake pressure monitoring
- Vertical velocity indication (e.g. rise/sink speed)
