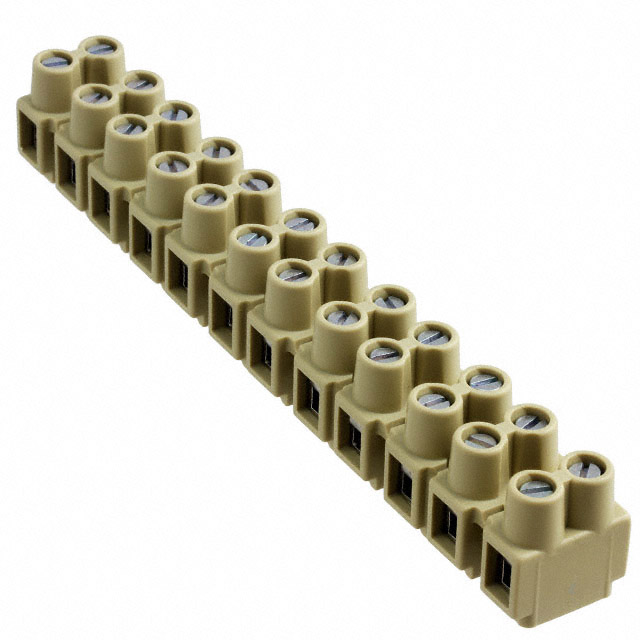

24356

Manufacturer :

Weidmuller

Product Category :

Barrier Blocks

Lead Free :

Lead Free

DIN Conformance :

No

JESD-609 Code :

e3

Flammability Rating :

UL94 V-2

Contact Gender :

Male

Wire Gauge :

12-22 AWG

Length :

110mm

Series :

MK

Packaging :

Bulk

REACH SVHC :

No SVHC

Wire Gauge (Min) :

12 AWG

Terminal Block Type :

Barrier Block

Color :

Beige

Current Rating :

20A

Contact Finish - Mating :

Tin

Total Number of Contacts :

12

Contact Finish Termination :

Tin (Sn)

Mixed Contacts :

No

IEC Conformance :

No

Wire/Cable Gauge :

22 AWG

Mounting Type :

Chassis, Panel

Voltage - Rated :

300V

Number of Positions :

12

Option :

GENERAL PURPOSE

Filter Feature :

No

Material - Insulation :

Polyamide (PA), Nylon

Factory Lead Time :

7 Weeks

Connector Type :

PCB, Terminal Block

Contact Material :

COPPER ALLOY

RoHS Status :

RoHS Compliant

Number of Wire Entries :

24

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Circuits :

12

Top Termination :

Screws

Barrier Type :

Enclosed

MIL Conformance :

No

Terminal Pitch :

5.08mm

Number of Rows :

2

UL Flammability Code :

94V-0

Bottom Termination :

Closed

Wire Gauge (Max) :

22 AWG

Published :

2002

Mount :

Chassis, Panel

Housing Material :

Nylon
