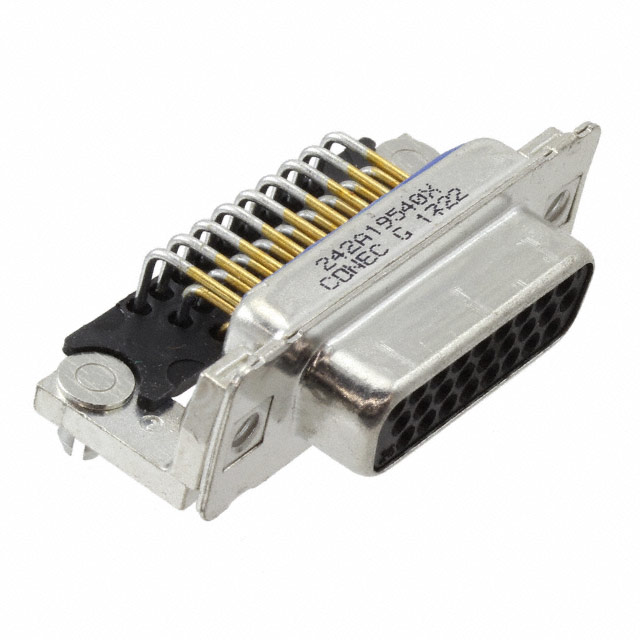

242A19540X
Or copy the link below:
- Mfr.Part #
- 242A19540X
- Manufacturer
- CONEC
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD RCPT 26P R/A SLDR
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CONEC
- Product Category :
- D-Sub Connector Assemblies
- Body Breadth :
- 0.509 inch
- Contact Type :
- Signal
- PCB Contact Pattern :
- STAGGERED
- Color :
- Black
- Packaging :
- Bulk
- Number of Rows :
- 3
- Rated Current (Signal) :
- 3A
- Contact Finish Thickness :
- 8.00μin 0.203μm
- Filter Feature :
- yes
- RoHS Status :
- ROHS3 Compliant
- Max Supply Voltage (DC) :
- 100V
- Total Number of Contacts :
- 26
- Reliability :
- COMMERCIAL
- Ingress Protection :
- IP20
- Series :
- 242A
- Dielectric Material :
- Thermoplastic
- Max Voltage Rating (DC) :
- 100V
- Contact Material :
- COPPER ALLOY
- Contact Form :
- Machined
- Plating :
- Tin
- Additional Feature :
- RoHS Compliant
- Number of Ports :
- 1
- Operating Temperature :
- -25°C~85°C
- Backset Spacing :
- 0.314 (7.98mm)
- Length :
- 39.52mm
- Flange Feature :
- Housing/Shell (4-40)
- Shell Finish :
- Tin
- Published :
- 2006
- Termination :
- Solder
- Radiation Hardening :
- No
- Feature :
- Board Lock, Filter, Mounting Brackets
- Number of Positions :
- 26
- Contact Finish :
- Gold
- Shell Size, Connector Layout :
- 2 DA A High Density
- Shell Material, Finish :
- Steel, Tin Plated
- Current Rating :
- 3A
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyester
- Connector Style :
- D-Sub, High Density
- Mount :
- Through Hole
- Number Of PCB Rows :
- 3
- Reference Standard :
- UL,VDE
- Gender :
- FEMALE
- Shell Material :
- Steel
- Orientation :
- RIGHT ANGLE
- Connector Type :
- Receptacle, Female Sockets
- Factory Lead Time :
- 12 Weeks
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Datasheets
- 242A19540X
242A Series D-Sub, High Density Receptacle, Female Sockets 26-Position Female Signal Solder 2 DA A High Density Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
242A19540X Overview
A Receptacle, Female Sockets package is included with it.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 242A Series.Furthermore, there are other features such as ROHS COMPLIANT, to name a few.With 1 ports, it is capable of managing a wide range of tasks.In many ways, Board Lock, Filter, Mounting Brackets makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -25°C~85°C.
242A19540X Features
Maximal supply voltage (DC) of 100V
242A series
242A19540X Applications
There are a lot of Conec
242A19540X D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
