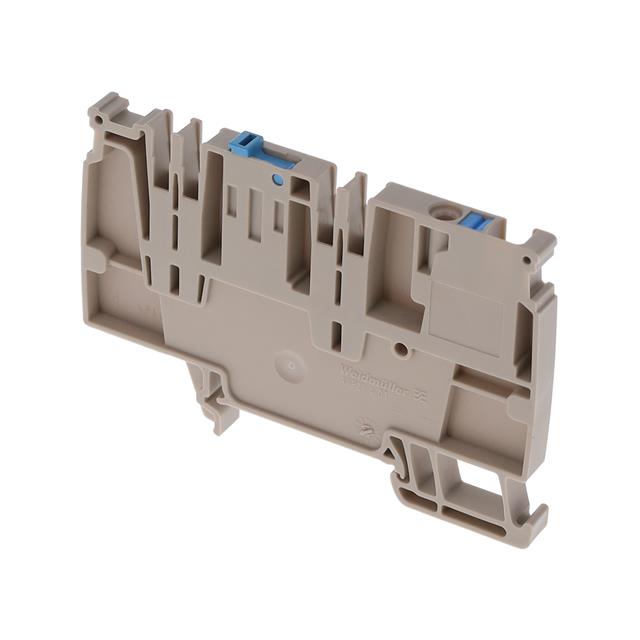

2428980000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Nominal voltage :

250V

Height :

82mm

Depth :

55

Clamp width :

6.10mm

Type :

AAP21 4 DT

Cross section (inflexible) (max.) :

4mm²

Nominal current :

20A

Content :

50pc(s)

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Cross section (flexible) (max.) :

4mm²

Manufacturer part # :

2428980000

Cross section (flexible) (min.) :

0.5mm²

Length :

53.50mm

Connectable conductor cross section multi-wired :

0.5 - 4

AWG (min.) :

26

Cross section (inflexible) (min.) :

0.5mm²

Connection :

Pull spring

Nominal current - rounded value :

20A

Industrial packaging :

yes

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section solid-core :

0.5 - 4

Subcategory :

Terminal Blocks

Width :

6.10mm

Stripping length (max.) :

12mm

AWG max. :

12

Product Type :

DIN Rail Terminal Blocks

Rated current In :

20

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 4
