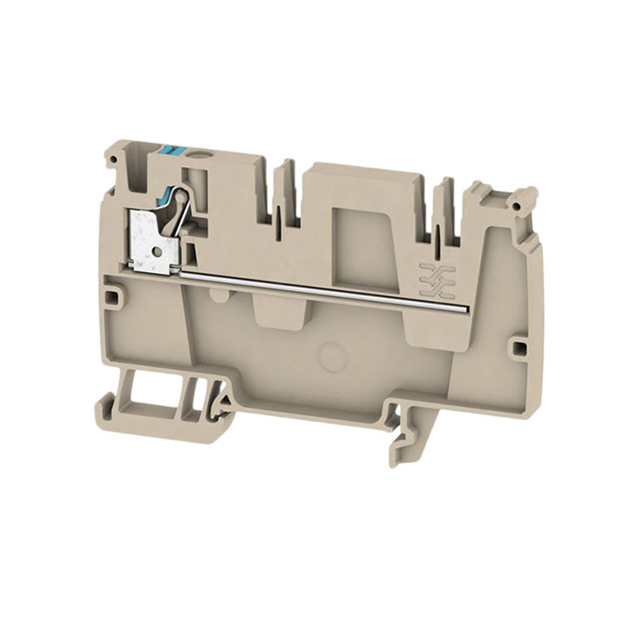

2428960000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Product Type :

DIN Rail Terminal Blocks

Connectable conductor cross section solid-core :

0.5 - 4

Brand :

Weidmuller

Inflammability class of insulation material according to with UL94 :

V0

AWG (min.) :

26

Manufacturer part # :

2428960000

Cross section (flexible) (max.) :

4mm²

Cross section (inflexible) (min.) :

0.5mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 4

Clamp width :

6.10mm

Rated current In :

32

Stripping length (max.) :

12mm

Product Category :

DIN Rail Terminal Blocks

Industrial packaging :

yes

Nominal voltage :

250V

Length :

53.50mm

Cross section (flexible) (min.) :

0.5mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Type :

AAP21 4 LI BL

Manufacturer :

Weidmuller

Cross section (inflexible) (max.) :

4mm²

Width :

6.10mm

Subcategory :

Terminal Blocks

AWG max. :

12

Depth :

53.5

Content :

50pc(s)

Height :

82mm

Connectable conductor cross section multi-wired :

0.5 - 4

Connection :

Pull spring
