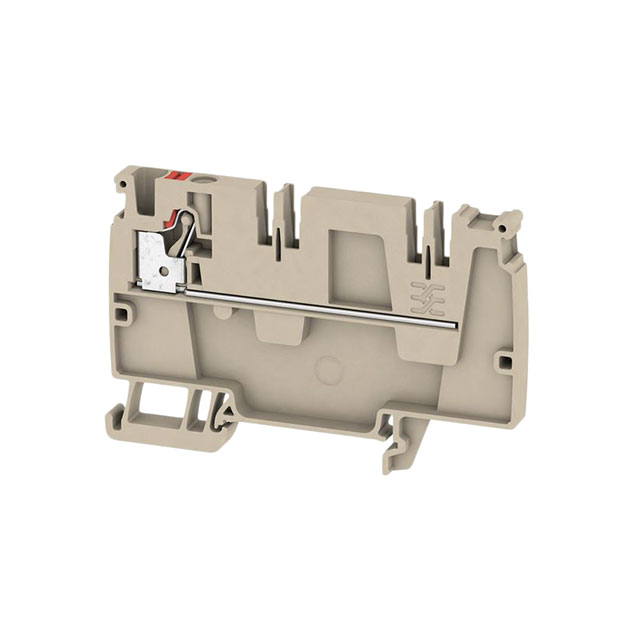

2428930000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Rated current In :

32

Type :

AAP21 4 LI RD

Connection :

Pull spring

Stripping length (max.) :

18mm

AWG max. :

12

Content :

50pc(s)

Connectable conductor cross section solid-core :

0.5 - 4

Product Category :

DIN Rail Terminal Blocks

Inflammability class of insulation material according to with UL94 :

V0

Nominal voltage :

250V

Manufacturer :

Weidmuller

AWG (min.) :

26

Subcategory :

Terminal Blocks

Clamp width :

6.10mm

Height :

82mm

Connectable conductor cross section multi-wired :

0.5 - 4

Product Type :

DIN Rail Terminal Blocks

Cross section (flexible) (max.) :

4mm²

Cross section (inflexible) (max.) :

4mm²

Length :

53.50mm

Cross section (flexible) (min.) :

0.5mm²

Industrial packaging :

yes

Depth :

53.5

Width :

6.10mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Manufacturer part # :

2428930000

Cross section (inflexible) (min.) :

0.5mm²

Brand :

Weidmuller

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 4
