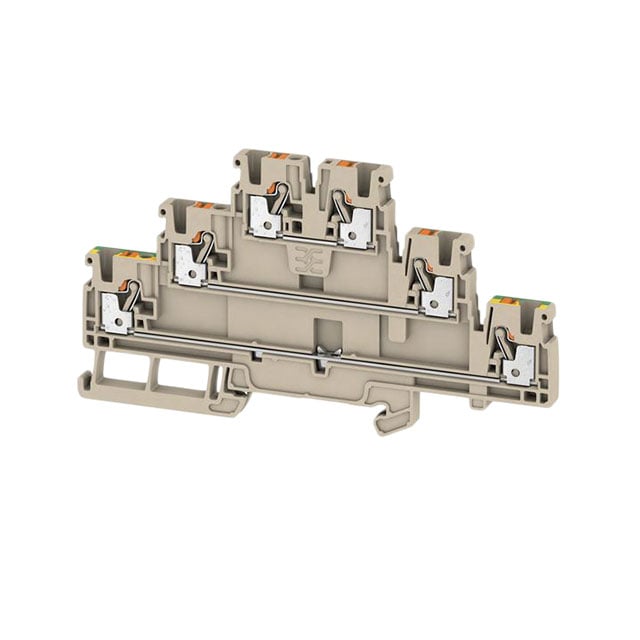

2428530000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Number of Positions :

6 Position

Voltage - Output (Max) :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 2.5

Flammability Rating :

UL 94 V-0

Width :

5.1mm

Cross section (flexible) (min.) :

0.14mm²

Connection :

Pull spring

Output Type :

FIXED

AWG (min.) :

28

Connectable conductor cross section multi-wired :

0.5 - 2.5

Product Status :

Not For New Designs

Stripping length (max.) :

10mm

AWG max. :

12

Product Category :

DIN Rail Terminal Blocks

Inflammability class of insulation material according to with UL94 :

V0

Rated current In :

24

Brand :

Weidmuller

Nominal current :

22A

RoHS :

Compliant

Control Features :

Enable

Output Configuration :

Positive

Current Rating :

24 A

Manufacturer :

Weidmuller

Current - Output :

150mA

Operating Temperature :

-40°C ~ 85°C (TA)

PSRR :

70dB (1kHz)

Voltage - Input (Max) :

5.5V

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

Supplier Device Package :

SNT-4A

Subcategory :

Terminal Blocks

Voltage Dropout (Max) :

0.28V @ 100mA

Current - Quiescent (Iq) :

1 µA

RoHS-compliant :

yes

Type :

A3T 2.5 FT-FT-PE

Nominal voltage :

800V

Mounting Style :

DIN Rail

Product Type :

DIN Rail Terminal Blocks

Maximum Operating Temperature :

+ 130 C

Nominal current - rounded value :

22A

Depth :

64.5

Minimum Operating Temperature :

- 60 C

Cross section (inflexible) (min.) :

0.14mm²

Manufacturer part # :

2428530000

Pins per row :

2

Series :

S-13R1

Rated Current :

24A

Number of Regulators :

1

Height :

116mm

No. of rows :

3

Rated Voltage :

800V

Cross section (flexible) (max.) :

2.5mm²

Base Product Number :

S-13R1

Connection Method :

Push-In

Cross section (inflexible) (max.) :

2.5mm²

Current - Supply (Max) :

9 µA

Length :

64.50mm

Package :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Color :

Beige

Package / Case :

4-SMD, Flat Leads

Connectable conductor cross section solid-core :

0.5 - 2.5

Housing Material :

Thermoplastic (TP)

Packaging :

Bulk

Protection Features :

Overcurrent, Reverse Current, Thermal Shutdown

Content :

50pc(s)

Clamp width :

5.1mm

Voltage - Output (Min/Fixed) :

2.4V

Voltage Rating :

800 V
