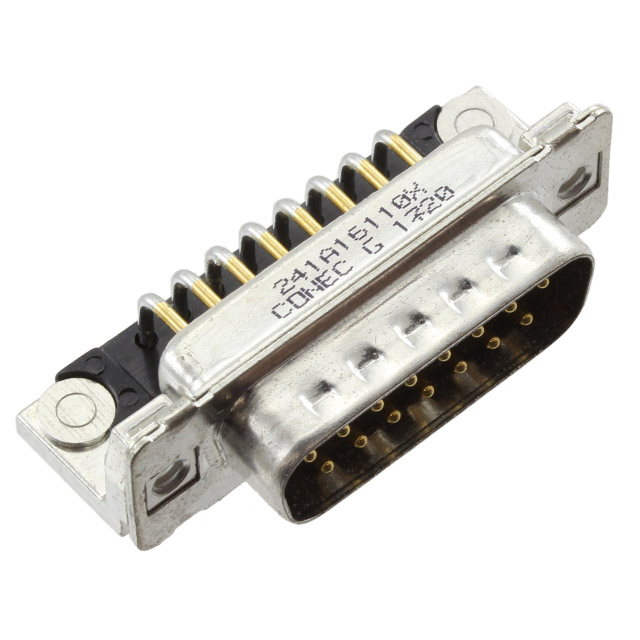

241A16110X

Manufacturer :

CONEC

Product Category :

D-Sub Connector Assemblies

Shell Size, Connector Layout :

2 DA A

Color :

Black

Contact Resistance :

10MOhm

Voltage - Rated :

100V

Flange Feature :

Housing/Shell (4-40)

Number Of PCB Rows :

2

Insulation Material :

GLASS FILLED POLYESTER

Backset Spacing :

0.283 (7.20mm)

Length - Termination :

0.13 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.30

Insulation Resistance :

100000000Ohm

ECCN Code :

EAR99

Body Depth :

0.48 inch

Reliability :

COMMERCIAL

Operating Temperature :

-25°C~105°C

Contact Type :

Signal

Additional Feature :

WITH METAL BRACKET AND CLIP

Contact Finish Thickness :

8.00μin 0.203μm

Shell Material, Finish :

Steel, Tin Plated

Reference Standard :

UL

Ingress Protection :

IP20

Body/Shell Style :

Receptacle

Mounting Option 2 :

Threaded

Material Flammability Rating :

UL94 V-0

Connector Type :

Plug, Male Pins

Contact Material :

COPPER ALLOY

Body Breadth :

0.509 inch

Filter Feature :

yes

Total Number of Contacts :

15

PCB Contact Pattern :

STAGGERED

Contact Form :

Machined

Current Rating (Amps) :

7.5A

Factory Lead Time :

12 Weeks

Number of Rows :

2

Mounting Type :

Board Edge, Through Hole, Right Angle

Shell Finish :

TIN OVER NICKEL

Dielectric Material :

Thermoplastic

Mating Contact Pitch :

0.109 inch

Connector Style :

D-Sub

Packaging :

Box

Contact Finish :

Gold

Body Length or Diameter :

1.556 inch

Insertion Force-Max :

3.336 N

Feature :

Board Lock, Filter, Grounding Indents

Termination :

Solder

Series :

241A

RoHS Status :

ROHS3 Compliant

Number of Positions :

15
