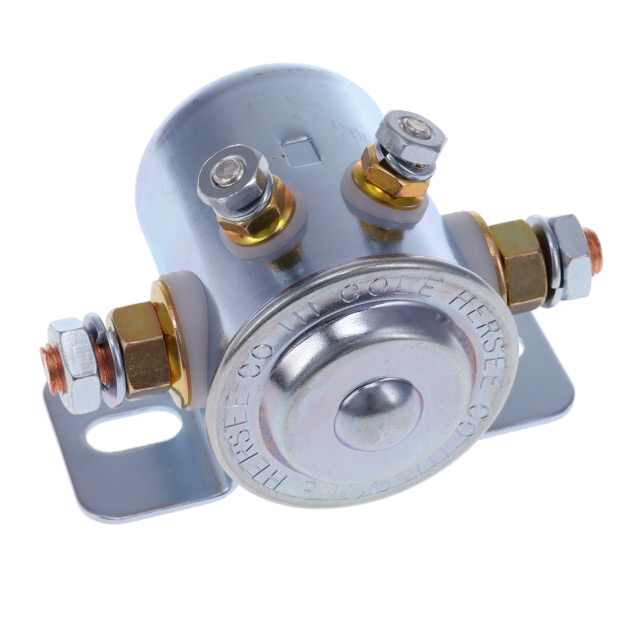

24008

Manufacturer :

Littelfuse

Product Category :

Power Relays, Over 2 Amps

Operating Temperature (Min) :

-55°C

RoHS Status :

Non-RoHS Compliant

Factory Lead Time :

20 Weeks

Terminal Finish :

Matte Tin (Sn)

Pbfree Code :

yes

Type :

Closed Frame (Pull), Tubular

Packing Method :

Bulk

Trip Time or Delay :

14400 s

HTS Code :

8536.10.00.40

Blow Characteristic :

Fast

Voltage - Rated :

24VDC

Body Height :

14.48mm

Rated Breaking Capacity :

500 A

Terminal Shape :

PIN WIRE

Rated Current :

8A

Surface Mount :

No

Published :

2015

Duty Cycle :

Intermittent

ECCN Code :

EAR99

Operating Temperature (Max) :

125°C

Mounting Feature :

Through Hole

Mounting Type :

Chassis Mount

JESD-609 Code :

e3

Body Length or Diameter :

4.7mm

Reference Standard :

CE; CSA; PSE; UL

Pre-arcing Rating :

56 A2/s

Joule Integral-Nom :

56 J

DC Resistance (DCR) :

29Ohm

Fuse Size :

2AG

Physical Dimension :

4.7mm x 14.48mm

Termination Style :

Screw Terminal
