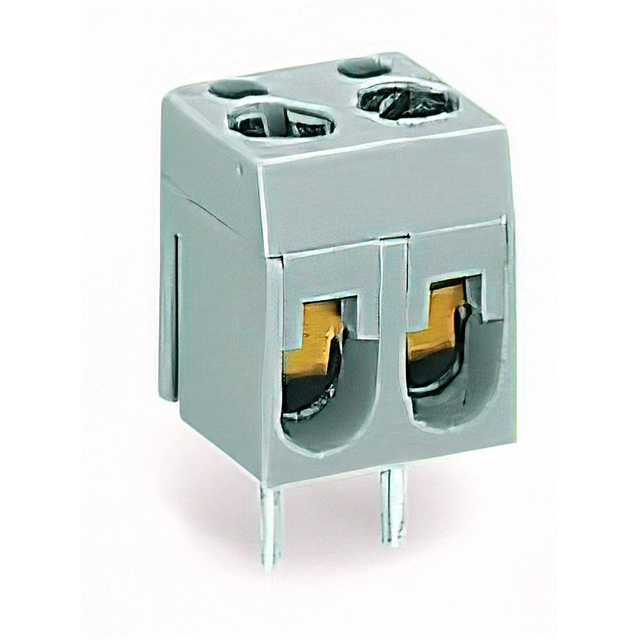

237-132

Manufacturer :

WAGO

Product Category :

Wire to Board

Number of Rows :

1

SVHC :

yes

PPAP :

No

Pitch :

0.200 (5.08mm)

Operating Voltage (Max) :

250V

Type of fastening :

Solder

Rated Current :

10 A

Composition :

Polyamide

RoHS :

yes

Screw Material - Plating :

-

Temperature Range :

-76 to 221 Degrees F

Packaging :

Box

Operating Temperature :

-60°C ~ 105°C

Number of Decks :

1

Packaging type :

Other

Height :

11

Manufacturer :

Wago

Type :

MODULAR TERMINAL BLOCK

HTS Code :

8536.69.40.40

Mounting Type :

PCB Mount

Screw Thread :

-

Number of Circuits :

2

Number of Levels :

1

Connectable conductor cross section multi-wired :

0.5 - 2.5

Product Length (mm) :

5.08

SVHC Exceeds Threshold :

yes

Gender :

F

ECCN (US) :

EAR99

Connection Type :

Screw Clamp

Safety Approval :

UL; VDE; CSA

Clamp Material - Plating :

Steel - Nickel Plated

Rated current In :

16

Number of Ways :

2

ECCN Code :

EAR99

Positions Per Level :

2

Fastening Method :

Screw

Automotive :

No

Torque - Screw :

-

Rated surge voltage :

2.5

Approvals :

CSA;UL

Reach Compliance Code :

Compliant

Mounting Style :

Through Hole

Pollution degree :

2

Wire Gauge :

14-20(AWG)

Maximum Current Rating (A) :

16

Color :

Gray

Inflammability class of insulation material according to with UL94 :

V0

Rad Hardened :

No

Max Current Rating :

16 A

Wire Termination :

Screw

Number of Contact Rows :

1

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Contacts :

2

Mating Orientation :

Horizontal with Board

Number of Poles :

2

Current Rating (Max) :

16(A)

EU RoHS :

Compliant with Exemption

Orientation :

Straight

Features :

-

Product Height (mm) :

11

Wire Cross Section :

2.5 mm2

Product Depth (mm) :

8.99

Product Status :

Active

Rated Voltage :

300 V

Housing Color :

Gray

Maximum Voltage Rating :

250V

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Body Orientation :

Straight

Flammability Rating :

UL94 V-0

Over voltage category :

III

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Mounting :

Through Hole
