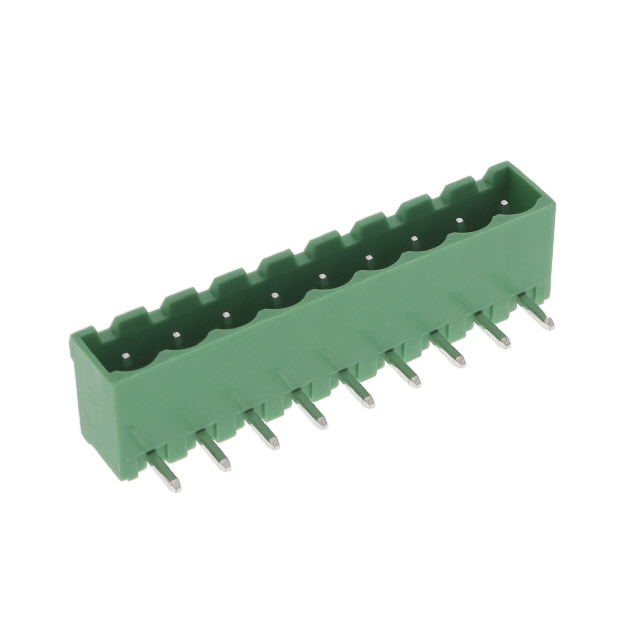

2350513-9
Or copy the link below:
- Mfr.Part #
- 2350513-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 9POS HEADER 90 DEG, 5.00MM, TAIL
- Stock
- 2,188
- In Stock ：
- 2,188
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Number of Positions :
- 9
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Contact Material :
- COPPER ALLOY
- Contact Tail Length :
- 0.177 4.50mm
- Voltage - UL :
- 300V
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Levels :
- 1
- RoHS Status :
- RoHS Compliant
- Termination Style :
- Solder
- Factory Lead Time :
- 18 Weeks
- Header Orientation :
- 90°, Right Angle
- Current - UL :
- 16A
- Operating Temperature :
- -40°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.327 8.30mm
- Material Flammability Rating :
- UL94 V-0
- Color :
- Green
- Series :
- TB, Buchanan
- Contact Mating Finish :
- Tin
- Pitch :
- 0.197 5.00mm
- Datasheets
- 2350513-9
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) TB, Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
2350513-9 Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the TB, Buchanan Series.It operates at an operating temperature of -40°C~105°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
2350513-9 Features
TB, Buchanan series
2350513-9 Applications
There are a lot of TE Connectivity AMP Connectors
2350513-9 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
