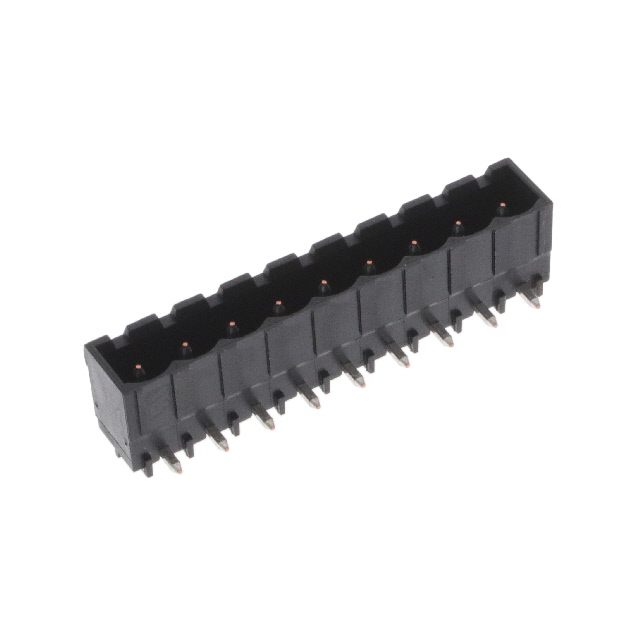

2342083-9
Or copy the link below:
- Mfr.Part #
- 2342083-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 9POS HDR 90 DEG HT 5.08MM PITCH
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Contact Material :
- COPPER ALLOY
- Factory Lead Time :
- 4 Weeks
- Contact Mating Finish :
- Tin
- Current - UL :
- 11A
- Material Flammability Rating :
- UL94 V-0
- Number of Levels :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- High Temp Housing
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Housing Material :
- Polyamide (PA), Nylon
- Contact Tail Length :
- 0.102 2.60mm
- RoHS Status :
- ROHS3 Compliant
- Termination Style :
- Solder
- Number of Positions :
- 9
- Pitch :
- 0.200 5.08mm
- Voltage - UL :
- 300V
- Color :
- Black
- Operating Temperature :
- -40°C~105°C
- Mounting Type :
- Through Hole
- Insulation Height :
- 0.341 8.66mm
- Packaging :
- Bulk
- Header Orientation :
- 90°, Right Angle
- Datasheets
- 2342083-9
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Polyamide (PA), Nylon Tin Copper Alloy
2342083-9 Overview
There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.In many ways, its High Temp Housing feature makes it more powerful.In this case, the device operates at -40°C~105°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
2342083-9 Features
2342083-9 Applications
There are a lot of TE Connectivity AMP Connectors
2342083-9 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
