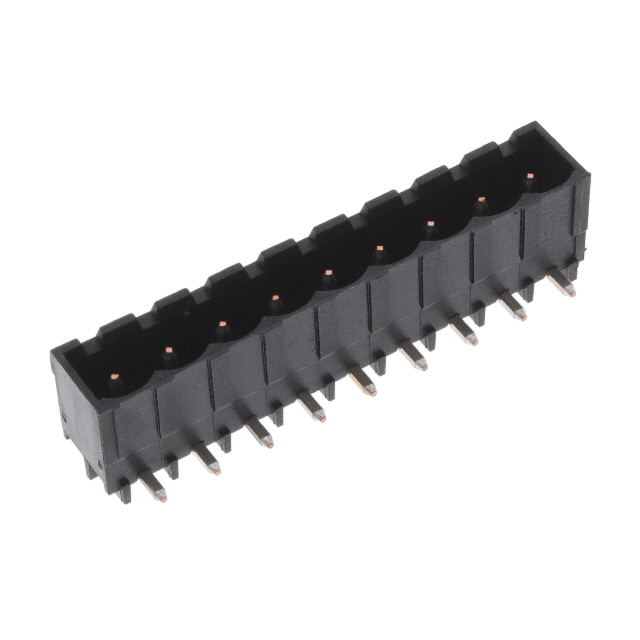

2342079-9
Or copy the link below:
- Mfr.Part #
- 2342079-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 9POS HDR 90 DEG HT 5.00MM PITCH
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Packaging :
- Bulk
- Header Orientation :
- 90°, Right Angle
- Contact Tail Length :
- 0.102 2.60mm
- Operating Temperature :
- -40°C~105°C
- Feature :
- High Temp Housing
- Pitch :
- 0.197 5.00mm
- Material Flammability Rating :
- UL94 V-0
- Termination Style :
- Solder
- Housing Material :
- Polyamide (PA), Nylon
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Voltage - UL :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 9
- Contact Mating Finish :
- Tin
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- ROHS3 Compliant
- Color :
- Black
- Number of Levels :
- 1
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 15 Weeks
- Insulation Height :
- 0.341 8.66mm
- Current - UL :
- 11A
- Datasheets
- 2342079-9
Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Polyamide (PA), Nylon Tin Copper Alloy
2342079-9 Overview
This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Several benefits come from the High Temp Housing feature.Devices operate at -40°C~105°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
2342079-9 Features
2342079-9 Applications
There are a lot of TE Connectivity AMP Connectors
2342079-9 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
