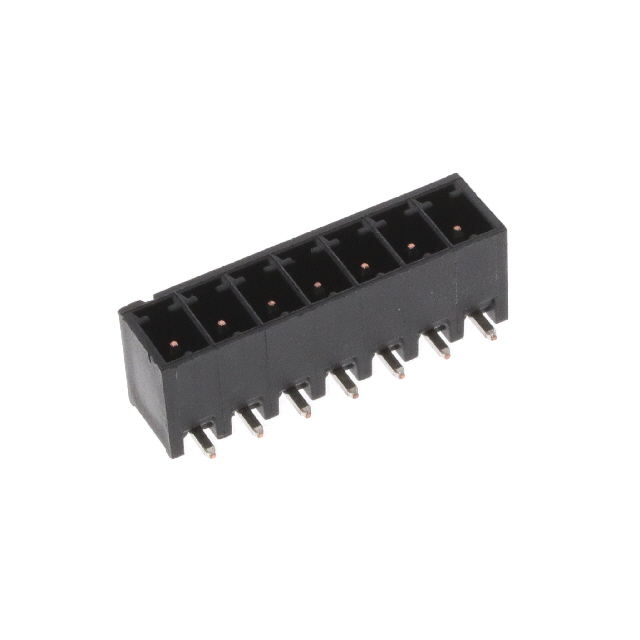

2342077-7
Or copy the link below:
- Mfr.Part #
- 2342077-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 7POS 90DEG 3.81MM
- Stock
- 101
- In Stock ：
- 101
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Voltage - UL :
- 300V
- Contact Material :
- COPPER ALLOY
- Feature :
- High Temp Housing
- Color :
- Black
- Current - UL :
- 11A
- Number of Levels :
- 1
- Mounting Type :
- Through Hole
- Contact Tail Length :
- 0.075 1.90mm
- Header Orientation :
- 90°, Right Angle
- Pitch :
- 0.150 3.81mm
- Insulation Height :
- 0.285 7.25mm
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Number of Positions :
- 7
- Termination Style :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~105°C
- Series :
- Buchanan
- Material Flammability Rating :
- UL94 V-0
- Contact Mating Finish :
- Tin
- Housing Material :
- Polyamide (PA), Nylon
- Factory Lead Time :
- 4 Weeks
- Datasheets
- 2342077-7
Bulk 0.150 3.81mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Buchanan Polyamide (PA), Nylon Tin Copper Alloy
2342077-7 Overview
The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the High Temp Housing feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
2342077-7 Features
Buchanan series
2342077-7 Applications
There are a lot of TE Connectivity AMP Connectors
2342077-7 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
