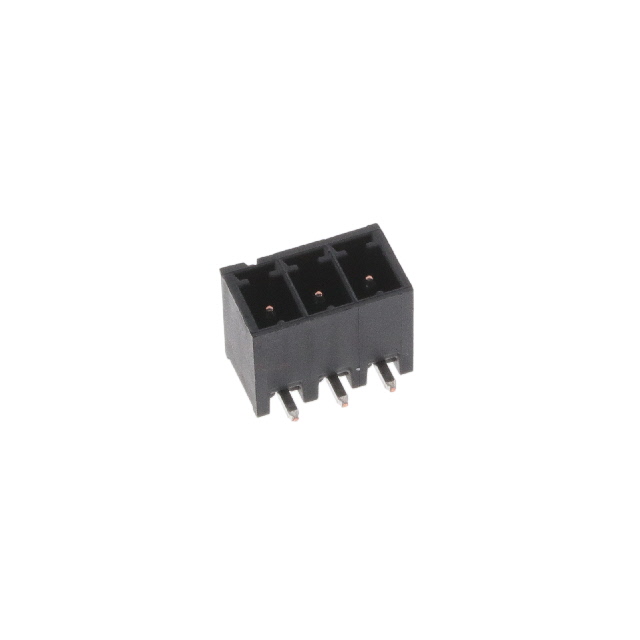

2342077-3
Or copy the link below:
- Mfr.Part #
- 2342077-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 3POS HDR 90 DEG HT 3.81MM PITCH
- Stock
- 779
- In Stock ：
- 779
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Factory Lead Time :
- 15 Weeks
- Voltage - UL :
- 300V
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 3
- Mounting Type :
- Through Hole
- Number of Levels :
- 1
- Current - UL :
- 11A
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Color :
- Black
- Operating Temperature :
- -40°C~105°C
- Termination Style :
- Solder
- Pitch :
- 0.150 3.81mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.285 7.25mm
- Feature :
- High Temp Housing
- Contact Tail Length :
- 0.075 1.90mm
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Header Orientation :
- 90°, Right Angle
- Housing Material :
- Polyamide (PA), Nylon
- Contact Mating Finish :
- Tin
- Datasheets
- 2342077-3
Bulk 0.150 3.81mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Polyamide (PA), Nylon Tin Copper Alloy
2342077-3 Overview
Its mounting type is Through Hole.Packaging is performed using a Bulk case.A number of features make it more powerful because of its High Temp Housing feature.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
2342077-3 Features
2342077-3 Applications
There are a lot of TE Connectivity AMP Connectors
2342077-3 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
