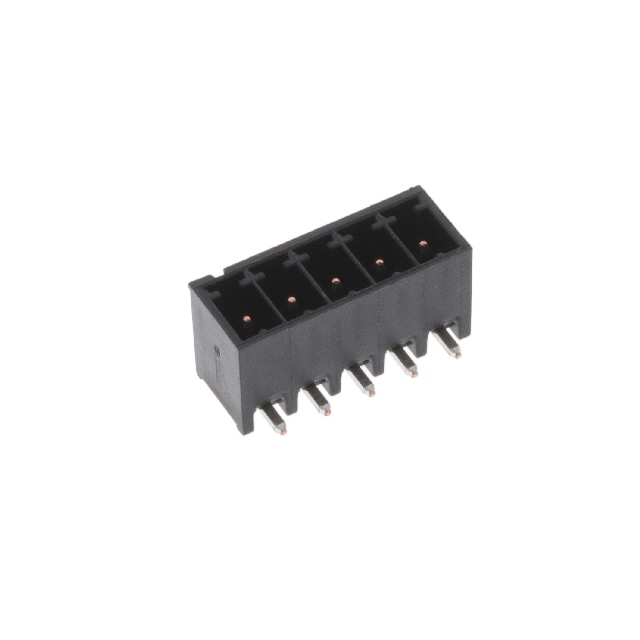

2342076-5
Or copy the link below:
- Mfr.Part #
- 2342076-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 5POS HDR 90 DEG HT 3.5MM PITCH T
- Stock
- 150
- In Stock ：
- 150
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Contact Mating Finish :
- Tin
- Number of Positions :
- 5
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Style :
- Solder
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Header Orientation :
- 90°, Right Angle
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Voltage - UL :
- 300V
- Color :
- Black
- Pitch :
- 0.138 3.50mm
- Feature :
- High Temp Housing
- Number of Levels :
- 1
- Contact Tail Length :
- 0.075 1.90mm
- Mounting Type :
- Through Hole
- Housing Material :
- Polyamide (PA), Nylon
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -40°C~105°C
- Insulation Height :
- 0.285 7.25mm
- Current - UL :
- 11A
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 15 Weeks
- Datasheets
- 2342076-5
Bulk 0.138 3.50mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Polyamide (PA), Nylon Tin Copper Alloy
2342076-5 Overview
The mounting type of the device is Through Hole.A Bulk case is used to package the product.A number of features make the High Temp Housing feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
2342076-5 Features
2342076-5 Applications
There are a lot of TE Connectivity AMP Connectors
2342076-5 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
