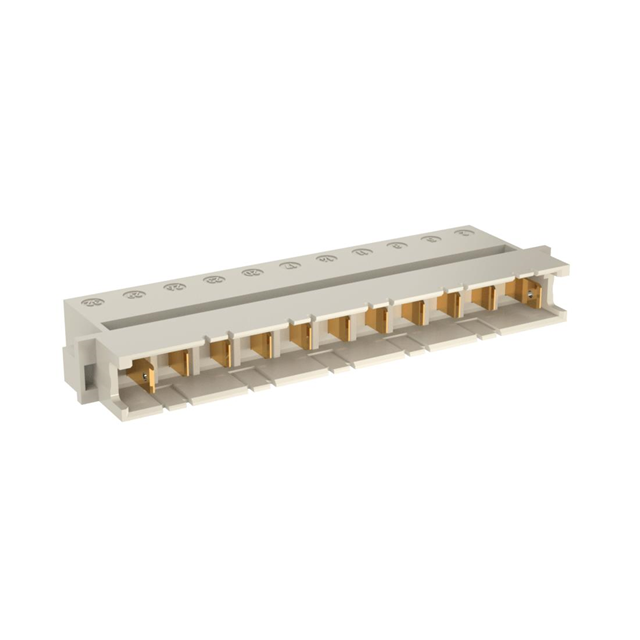

233235

Manufacturer :

TE Connectivity

Product Category :

Blade Type Power Connector Assemblies

Connector Type :

Header, Male Blades

Operating Temp Range :

-55C to 125C

Contact Style :

BLADE PIN-SKT

PCB Contact Pattern :

RECTANGULAR

Gender :

M

Number of Contacts :

11(POS)

Mating Contact Pitch :

0.3 inch

Base Product Number :

-

Subcategory :

Headers and Edge Type Connectors

IEC Conformance :

yes

Durability :

500 Cycles

Product Depth (mm) :

28.6(mm)

Total Number of Contacts :

11

Body Orientation :

RIGHT ANGLE

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Pitch (mm) :

7.62(mm)

Mounting Style :

Through Hole

Reach Compliance Code :

Compliant

Terminal Pitch :

7.62 mm

MIL Conformance :

No

Termination Type :

Solder

Body/Shell Style :

Receptacle

Wire Gauge :

-

Connector Style :

-

Package :

Tray

Insertion Force-Max :

7.1168 N

Termination :

Solder

Name of Rows Loaded :

B

Series :

DIN

Color :

-

ECCN Code :

EAR99

Operating Temperature :

-55°C ~ 125°C

Rated Current (Signal) :

10 A

Material - Insulation :

Polycarbonate, Glass Filled

Mixed Contacts :

No

Features :

Flange

Reference Standard :

UL, CSA

Contact Resistance :

8 mΩ

Body Breadth :

0.374 inch

Dielectric Withstanding Voltage :

3100VAC V

Fastening Type :

Push-Pull

Body Depth :

1.126 inch

Additional Feature :

STANDARDS: DIN 41612; IEC 60603-2, TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM

Manufacturer :

ERNI

Pitch :

0.300" (7.62mm)

Contact Gender :

Male

Termination Method :

Solder

Current Rating (Amps) :

15 A

Number of Contact Rows :

1

Contact Finish Thickness :

-

Product Length (mm) :

94(mm)

HTS Code :

8536.69.40.40

Number of Rows :

1

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Housing Material :

Polycarbonate

Product Status :

Active

Filter Feature :

No

Type :

DIN 41612

Polarization Key :

POLARIZED HOUSING

Contact Material :

COPPER ALLOY

Insulation Resistance :

1000000000000 Ω

Pbfree Code :

yes

Reliability :

COMMERCIAL

Contact Finish :

Silver

DIN Conformance :

yes

Number of Positions :

11

Mounting Type :

Through Hole, Right Angle

Contact Plating :

Silver

Terminal Length :

0.138 inch

Withdrawl Force-Min :

7.1168 N
